Allen-Bradley 1398-DDM-009X

✓ In Stock

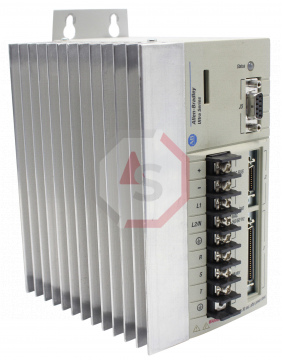

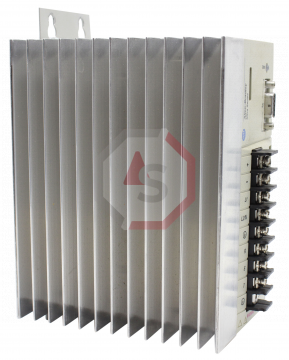

1398-DDM-009X Image 1 thumbnail
1398-DDM-009X Image 2 thumbnail
1398-DDM-009X Image 3 thumbnail
1398-DDM-009X Image 4 thumbnail
Manufacturer: Allen Bradley - Drives
Product Type: Drive
Part Number: 1398-DDM-009X
Series: Servo Drive 1398

Description:

The 1398-DDM-009X is an Allen Bradley universal digital drive module, a part of ultra 100 series. The module inputs a 100-240 Vac_rms (47 – 63 Hz) and outputs a continuous 1 kW max with peak current of 5 amperes. This device has a bus capacitance of 1880μF with a bus capacitance energy absorption of 51 J. The ambient temperature range suitable for this device to operate is from 0 to 55 degrees Celsius.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The 1398-DDM-009X is an Allen Bradley universal digital drive module, an ultra 100 and is a part of 1398 Drives family which offers control of velocity, position and current of drive system. The module inputs a single phase 100-240 Vac with input frequency of 47 – 63 Hz and nominal input current of 9 A_rms. It outputs a continuous 0.6 kW at 120 Vac_rms and 1.2 KW power at 240Vac_rms with a continuous current of 5 A. It also gave a peak output of 1.3 KW at 120 Vac_rms and 2.7 KW power at 240V_rms with a continuous current of 15 A. It comes with bus capacitance of 1880 μF. The module has a user memory to store parameter up to 20 years and a speed control command range of 0 to ±32,767 RPM. The module has 2 digital 12-24 V outputs and 4 12-24V digital inputs. It has a 26LS33 Auxiliary Encoder Signal Input with count frequency of 4 MHz and AM26LS31 or AM26C31 Differential Driver for Motor Encoder Output. It comes with the storage and operating temperature of about -40 to 158 ℉ and 32 to 131℉ respectively with relative humidity of 5 to 95%. The module can tolerate up to 15g shock and vibration up to 2g at (10-2000 Hz) and the weight of the module is approx. 4.5 lbs.

We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the 1398-DDM-009X?

Answer: Yes. We offer repairs for the 1398-DDM-009X and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Allen Bradley - Drives and 1398-DDM-009X?

Answer: If you buy the 1398-DDM-009X through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the 1398-DDM-009X online?

Answer: Yes. Automation Stop sells the 1398-DDM-009X online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the 1398-DDM-009X?

Answer: The 1398-DDM-009X is made by Allen Bradley - Drives.


Question: What type of product is the 1398-DDM-009X?

Answer: The 1398-DDM-009X is part of the Servo Drive 1398 series.


Series information for 1398-DDM-009X

For additional information about 1398-DDM-009X check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding 1398-DDM-009X.

Revision Part # Also Known As Availability
1398-DDM-009X/A 1398-DDM-009X Ser A, Series A, Rev A Request a Quote
