Allen-Bradley 20BD248A3ANNAEC0

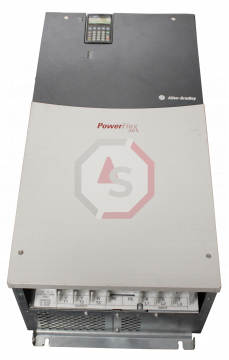

20BD248A3ANNAEC0 Image 1 thumbnail
20BD248A3ANNAEC0 Image 2 thumbnail
20BD248A3ANNAEC0 Image 3 thumbnail
20BD248A3ANNAEC0 Image 4 thumbnail
Manufacturer: Allen Bradley - Drives
Product Type: Drive
Part Number: 20BD248A3ANNAEC0
Series: PowerFlex 700

Description:

Allen Bradley's 20BD248A3ANNAEC0 is an adjustable frequency AC drive of type PowerFlex 700. It has 480 volts AC (alternating current) and 3 phase input. It has an ND rating of 248 amps and 200 horsepower at this rated input. It features frame size 6, IP20 rating, numeric keypad with display, and EtherNet/ IP communication slot. It has a built-in EMC filter with a CM choke and offers a vector control option for induction motor speed/ torque controls.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

About

Adjustable frequency drive 20BD248A3ANNAEC0 belongs to the PowerFlex 700 family of alternating current drives by Allen Bradley. It is a three-phase alternating current drive. It needs an input of 480 volts. At this rated input, it offers an ND rating of 200 hp. It extracts 233 amperes of current and needs 194 KVA of input power. It can continuously supply a motor with a current of 248 amperes. The motor can extract 273 amperes for 1 minute and 372 amperes for 3 seconds from the drive.

20BD248A3ANNAEC0 is compatible with Allen Bradley's Ethernet/IP communication adapter and also has a slot for its attachment. Which allows talking the drive with other Allen Bradley's devices on the same network. It also offers master-slave control among drives. It offers a vector motor control algorithm for outstanding performance for applications. This algorithm is based on pretended force technology by Allen-Bradley. It also contains LCD as a human interface tool that provides; a backlit display with a resolution of 7 lines x 21 characters, multiple languages options, a calculator-like number pad, control keys, and alternative functions keys.
It offers a 2kHz frequency for the carrier. And it has an output frequency range of 0 - 420 Hz. It has a 47 hertz through the 63-hertz input frequency range. It comes with a frame size 6 and IP20 enclosure. It also has integrated EMC filtering with DC bus choke. It has a displacement power factor of 0.98 and an efficiency of 97.5% over the full speed range.

Technical Specifications

Manufacturer Allen Bradley/Rockwell Automation
Series PowerFlex 700 AC Drives
Voltage 480V AC
Ph. 3
Prechg. -
Amps 248
Hp 200
Frame 6
Enclosure IP 20, NEMA/UL Type 1
Operator Interface LCD Display, Full Numeric Keypad
Documentation Manual
w/Brake IGBT No
w/Resistor No
CE Filter Yes
CM Choke Yes
Network Type EtherNet/IP
Control Vector
I/O Volts 24V DC
Type None

We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.

If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the 20BD248A3ANNAEC0?

Answer: Yes. We offer repairs for the 20BD248A3ANNAEC0 and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Allen Bradley - Drives and 20BD248A3ANNAEC0?

Answer: If you buy the 20BD248A3ANNAEC0 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the 20BD248A3ANNAEC0 online?

Answer: Yes. Automation Stop sells the 20BD248A3ANNAEC0 online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the 20BD248A3ANNAEC0?

Answer: The 20BD248A3ANNAEC0 is made by Allen Bradley - Drives.


Question: What type of product is the 20BD248A3ANNAEC0?

Answer: The 20BD248A3ANNAEC0 is part of the PowerFlex 700 series.


Question: What is the amperes of the 20BD248A3ANNAEC0?

Answer: The amperes of the Allen Bradley/Rockwell Automation 20BD248A3ANNAEC0 is 248.


Question: Does the Allen Bradley-Rockwell Automation 20BD248A3ANNAEC0 have a CE Filter?

Answer: Yes.


Question: Does the Allen Bradley 20BD248A3ANNAEC0 have a CM Choke?

Answer: Yes.


Question: What Control does the Allen-Bradley 20BD248A3ANNAEC0 have?

Answer: The Allen-Bradley 20BD248A3ANNAEC0 has a Vector Control.


Question: What Documentation does the 20BD248A3ANNAEC0 have?

Answer: The 20BD248A3ANNAEC0 has a Manual Documentation.


Question: What Enclosure does the Allen Bradley/Rockwell Automation 20BD248A3ANNAEC0 have?

Answer: The 20BD248A3ANNAEC0 has a Enclosure of IP 20, NEMA/UL Type 1.


Question: What is the Frame of the Allen Bradley Automation 20BD248A3ANNAEC0?

Answer: The Allen Bradley Automation 20BD248A3ANNAEC0 has a Frame of 6.


Question: What is the Hp of the 20BD248A3ANNAEC0?

Answer: The Hp of the Allen Bradley/Rockwell Automation 20BD248A3ANNAEC0 is 200.


Question: What is the input/output Volts of the 20BD248A3ANNAEC0?

Answer: The Allen Bradley 20BD248A3ANNAEC0 has a input/output Volts of 24 volts direct current (DC).


Question: What Network Type does the Allen Bradley Automation 20BD248A3ANNAEC0 have?

Answer: The 20BD248A3ANNAEC0 has a EtherNet/IP Network Type.


Question: What operator interface is included with the Rockwell-Automation 20BD248A3ANNAEC0?

Answer: The 20BD248A3ANNAEC0 has a LCD Display, Full Numeric key operator interface unit.


Question: What Ph. does the Allen Bradley/Rockwell Automation 20BD248A3ANNAEC0 have?

Answer: The Allen Bradley/Rockwell Automation 20BD248A3ANNAEC0 has a Ph. of 3.


Question: What Prechg. does the 20BD248A3ANNAEC0 have?

Answer: The 20BD248A3ANNAEC0 has a - Prechg..


Question: What Voltage does the Allen Bradley-Rockwell Automation 20BD248A3ANNAEC0 have?

Answer: The Allen Bradley-Rockwell Automation 20BD248A3ANNAEC0 has a Voltage of 480 volts alternating current (AC).


Series information for 20BD248A3ANNAEC0

For additional information about 20BD248A3ANNAEC0 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding 20BD248A3ANNAEC0.

Revision Part # Also Known As Availability
20BD248A3ANNAEC0/A 20BD248A3ANNAEC0 Ser A, Series A, Rev A Request a Quote
