| Manufacturer: | Allen Bradley - Drives |
| Product Type: | Drive |
| Part Number: | 20F11ND027AA0NNNNN |
| Series: | PowerFlex 753 |
Description:

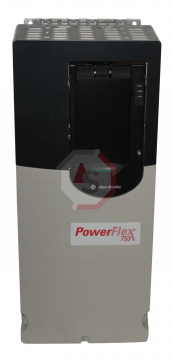

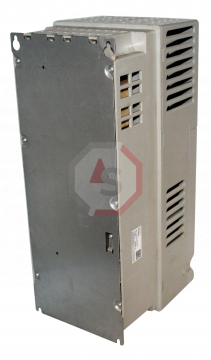

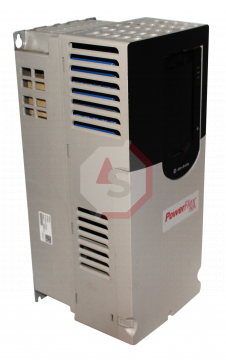

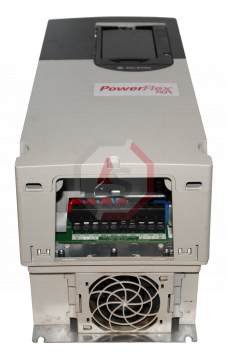

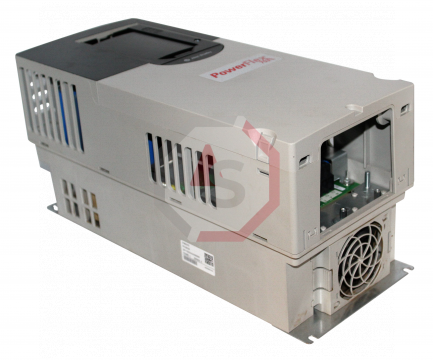

The 20F11ND027AA0NNNNN from Allen- Bradley is an adjustable frequency alternating current drive. This drive hail from the PF 753 drives, and has an input voltage of 480 volts alternating current/650 volts direct current. It has a motor output power of 20 Horsepower and current output of 27 Amperes for regular duty and a motor output power of 15 Horsepower and current output of 22 Amperes for heavy-duty. This drive is protected by an IP20/IP00 certification and is placed in a NEMA/UL Type Open container. It contains built-in filtering and a deactivated CM Cap connection. This drive's door does not have a Human Interface Module fitted.
Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.
Pay
We accept credit cards from all major providers, as well as PayPal.
Ship
We offer worldwide shipping with UPS and DHL.
Warranty
We proudly offer a one year Automation Stop warranty on most products.
Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
The 20F11ND027AA0NNNNN from Allen-Bradley is an alternating current Drive and it is part of the PowerFlex 753 product line. This drive is ideal for controlling a three-phase motor rated at 27 amps. It has a standard duty output power of 20 horsepower and heavy-duty output power of 15 horsepower. This is a modular form of AC drive that may be utilized in simple applications as well as be connected into high-tech industrial networks. Its versatility is seen even in power supply options, since it is powered by 480 Volts AC three-phase energy but also includes DC connectors. Internal filtering is included with this drive, as well as a Dynamic Brake option. The 20F11ND027AA0NNNNN is a slot-based drive, just as the rest of the PowerFlex 750 series. Sensorless Vector Control and Vector Control using FORCE technology are used to achieve perfect control. They both use PWM with a customizable carrier frequency of 4 kHz for control. The frequency of the output ranges from 0 to 590 Hertz. When the 20F11ND027AA0NNNNN module is launched, it conducts diagnostics, and if there is a problem, the user is told through the HMI user interface.
A flange is used to install the drive. It's an air-cooled gadget that has to be kept at temperatures between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit). It comes in an IP00/IP20 certified enclosure with a frame size of 3 inches. Its outside dimensions are 260.0 x 515.0 x 212.0 millimetres with the flange included in (10.24 x 20.28 x 8.35 inches). This bulletin 750 gadget weighs about 12 kg (26 pounds). The drive is certified by ABS, c-UL-us, and CE. Apart from speed and torque regulation, the 20F11ND027AA0NNNNN can also be used for motor start-up and shutdown protection, as it includes multiple programmable stop modes such as Ramp, Coast, DC-Brake, Ramp-to-Hold, Fast Braking, and Current Limit Stop, as well as two (2) acceleration and deceleration settings that can be programmed in 0.1 second increments from 0-3600 seconds. It also includes an S-curve timer that can be adjusted from 0-100 percent and is suitable for typical duty operation.
Technical Specifications
| Manufacturer | Allen Bradley/Rockwell Automation |
| Series | PowerFlex 753-Series AC Drives |
| MPN | 20F11ND027AA0NNNNN |
| Input Type | AC Input with Precharge, includes DC Terminals |
| Enclosure | IP20/IP00, NEMA UL Type Open |
| Voltage | 480V AC/650V DC |
| Amps | 27 |
| Hp | 20 |
| Enclosure Code B,J,L,T | - |
| Enclosure Code F | 3 |
| Enclosure Code G | 3 |
| Enclosure Code N | 3 |
| Enclosure Code K,P,W,Y | - |
| Enclosure Code R | - |
| Filtering | Yes |
| Default CM Cap Connection | Jumper Removed |
| Internal Resistor | No |
| Internal Transistor | Yes |
| Operator Interace | No Door Mounted HIM |
FAQ
Question: Does Automation Stop offer repairs on the 20F11ND027AA0NNNNN?
Answer: Yes. We offer repairs for the 20F11ND027AA0NNNNN and it comes with our 1 Year Automation Stop Warranty.
Question: What type of warranty comes with the Allen Bradley - Drives and 20F11ND027AA0NNNNN?
Answer: If you buy the 20F11ND027AA0NNNNN through Automationstop.com it comes with our 1 Year Warranty and no other warranties.
Question: Can I buy the 20F11ND027AA0NNNNN online?
Answer: Yes. Automation Stop sells the 20F11ND027AA0NNNNN online and you can check out for the quantity and condition listed available above.
Question: What is the manufacturer for the 20F11ND027AA0NNNNN?
Answer: The 20F11ND027AA0NNNNN is made by Allen Bradley - Drives.
Question: What type of product is the 20F11ND027AA0NNNNN?
Answer: The 20F11ND027AA0NNNNN is part of the PowerFlex 753 series.
Question: What amperes does the 20F11ND027AA0NNNNN have?
Answer: The amperes of the Rockwell Automation 20F11ND027AA0NNNNN is 27.
Question: What Default CM Cap Connection does the 20F11ND027AA0NNNNN have?
Answer: The Allen Bradley Automation 20F11ND027AA0NNNNN has a Jumper Removed Default CM Cap Connection.
Question: What is the Enclosure of the 20F11ND027AA0NNNNN?
Answer: The 20F11ND027AA0NNNNN has a Enclosure of IP20/IP00, NEMA UL Type Open.
Question: What Enclosure Code B,J,L,T does the Allen Bradley-Rockwell Automation 20F11ND027AA0NNNNN have?
Answer: The 20F11ND027AA0NNNNN has a - Enclosure Code B,J,L,T.
Question: What is the Enclosure Code F of the Rockwell Automation 20F11ND027AA0NNNNN?
Answer: The Rockwell Automation 20F11ND027AA0NNNNN has a Enclosure Code F of 3.
Question: What is the Enclosure Code G of the 20F11ND027AA0NNNNN?
Answer: The 20F11ND027AA0NNNNN has a Enclosure Code G of 3.
Question: What Enclosure Code K,P,W,Y does the 20F11ND027AA0NNNNN have?
Answer: The 20F11ND027AA0NNNNN has a - Enclosure Code K,P,W,Y.
Question: What Enclosure Code N does the Allen Bradley 20F11ND027AA0NNNNN have?
Answer: The 20F11ND027AA0NNNNN has a Enclosure Code N of 3.
Question: What Enclosure Code R is included with the Rockwell Automation 20F11ND027AA0NNNNN?
Answer: The Rockwell Automation 20F11ND027AA0NNNNN has a - Enclosure Code R.
Question: What Hp does the Rockwell-Automation 20F11ND027AA0NNNNN have?
Answer: The Hp of the 20F11ND027AA0NNNNN is 20.
Question: What Input Type is included with the 20F11ND027AA0NNNNN?
Answer: The 20F11ND027AA0NNNNN has a alternating current (AC) Input with Precharge, includes direct current Terminals Input Type.
Question: Does the Rockwell Automation 20F11ND027AA0NNNNN have a Internal Resistor?
Answer: No.
Question: Does the 20F11ND027AA0NNNNN have a Internal Transistor?
Answer: Yes.
Question: Does the 20F11ND027AA0NNNNN have a Operator Interace?
Answer: No Door Mounted HIM.
Question: What Voltage does the 20F11ND027AA0NNNNN have?
Answer: The Voltage of the 20F11ND027AA0NNNNN is 480 volts AC (alternating current)/480 volts direct current (DC).
Series information for 20F11ND027AA0NNNNN
For additional information about 20F11ND027AA0NNNNN check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding 20F11ND027AA0NNNNN.
| Revision Part # | Also Known As | Availability |
|---|---|---|
| 20F11ND027AA0NNNNN/A | 20F11ND027AA0NNNNN Ser A, Series A, Rev A | Request a Quote |
