Allen-Bradley 25A-A011N104

✓ In Stock

25A-A011N104 Image 1 thumbnail
25A-A011N104 Image 2 thumbnail
Manufacturer: Allen Bradley - Drives
Product Type: Automation Product
Part Number: 25A-A011N104
Series: PowerFlex 523

Description:

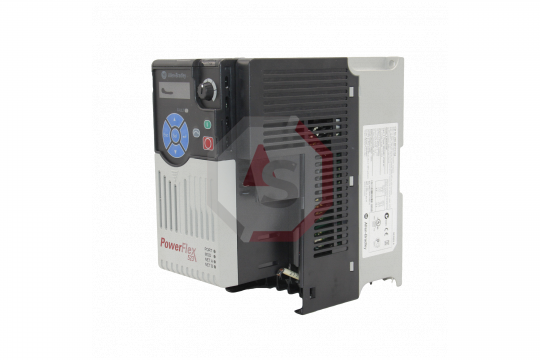

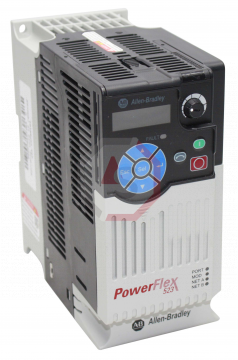

The 25A-A011N104 by Allen-Bradley is PowerFlex 523 series AC Drive. This drive component is enclosed in an IP 20 NEMA / open type enclosure and operates at 240V AC. Additionally, it features a B-frame size. This device has a current rating of 11 amps, a horsepower rating of 3 Hp, a wattage rating of 2.2kW, standard and heavy-duty functionality, and no filter. The item is also equipped with the industry-standard interface module.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

About

The 25A-A011N104 from Allen-Bradley is a B-frame size PowerFlex 523 1-phase filterless low-voltage AC drive. It includes one analog unipolar voltage input, one analog jumper selectable output, one relay output, and five programmable digital inputs. This PowerFlex series AC drive also contains an Ethernet/IP port and a dual Ethernet/IP alternative card. It requires an IP20 NEMA open-grade enclosure and dimensions of 7.08 x 3.42 x 6.77 inches (approximately). The device supports zero stacking features and may be mounted on a panel or can be installed with a DIN rail. This drive also contains a LED screen and a keyboard input with an installed potentiometer.
In both ordinary and heavy-duty modes, the 25A-A011N104 drive generates three (03) horsepower and 2.2 kW. It has an input voltage range of 170-264V AC, an output current of 11A, and a total wattage loss of 111. It has an input frequency range of 47 to 63 Hz and an output frequency range of 500 Hz. A temperature variation of -20 to 50 °C is required to operate the function of this drive unit, whereas the non-operational temperature varies from -40 to 85 degrees Celsius. It has a non-condensing relative humidity of 0-95 percent and a maximum operating altitude of 1000 meters without derating. This drive has a working shock of 15g and a non-operating shock of 30g. When operating, the 25A-A011N104 drive vibrates at a rate of 2g, and when not working, it vibrates at a rate of 2.5g.

Technical Specifications

Manufacturer Allen Bradley / Rockwell Automation
Series PowerFlex 523 Adjustable Frequency AC Drive
MPN 25A-A011N104
Voltage 240V AC
Phase 1
Enclosure IP 20 NEMA/Open
Interface Module Standard
EMC Filter No Filter
Braking Standard
Amps 11
Frame B
HP (Normal Duty) 3
kW (Normal Duty) 2.2
HP (Heavy Duty) 3
kW (Heavy Duty) 2.2

We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.

If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the 25A-A011N104?

Answer: Yes. We offer repairs for the 25A-A011N104 and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Allen Bradley - Drives and 25A-A011N104?

Answer: If you buy the 25A-A011N104 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the 25A-A011N104 online?

Answer: Yes. Automation Stop sells the 25A-A011N104 online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the 25A-A011N104?

Answer: The 25A-A011N104 is made by Allen Bradley - Drives.


Question: What type of product is the 25A-A011N104?

Answer: The 25A-A011N104 is part of the PowerFlex 523 series.


Question: What amperes does the Allen Bradley-Rockwell Automation 25A-A011N104 have?

Answer: The amperes of the 25A-A011N104 is 11.


Question: What Braking does the 25A-A011N104 have?

Answer: The Allen Bradley/Rockwell Automation 25A-A011N104 has a Standard Braking.


Question: Does the 25A-A011N104 have a EMC Filter?

Answer: No Filter.


Question: What Enclosure does the 25A-A011N104 have?

Answer: The Enclosure of the 25A-A011N104 is IP 20 NEMA/Open.


Question: What Frame is included with the Allen Bradley-Rockwell Automation 25A-A011N104?

Answer: The 25A-A011N104 has a B Frame.


Question: What is the HP (Heavy Duty) of the Allen Bradley 25A-A011N104?

Answer: The HP (Heavy Duty) of the Allen Bradley 25A-A011N104 is 3.


Question: What is the HP (Normal Duty) of the Rockwell Automation 25A-A011N104?

Answer: The 25A-A011N104 has a HP (Normal Duty) of 3.


Question: What Interface Module is included with the 25A-A011N104?

Answer: The 25A-A011N104 has a Standard Interface Module.


Question: What is the kW (Heavy Duty) of the 25A-A011N104?

Answer: The Allen Bradley 25A-A011N104 has a kW (Heavy Duty) of 2.2.


Question: What kW (Normal Duty) does the 25A-A011N104 have?

Answer: The kW (Normal Duty) of the Allen-Bradley 25A-A011N104 is 2.2.


Question: What is the Phase of the Allen Bradley/Rockwell Automation 25A-A011N104?

Answer: The Phase of the Allen Bradley/Rockwell Automation 25A-A011N104 is 1.


Question: What Voltage does the 25A-A011N104 have?

Answer: The 25A-A011N104 has a Voltage of 240 volts alternating current (AC).
