| Manufacturer: | Allen Bradley - HMI |
| Product Type: | HMI / Operator Interface |
| Part Number: | 2711-B6C14 |
| Series: | Panelview 600 |
Description:
The 2711-B6C14 is a Panelview 600 by Allen-Bradley and comes with keypad/touchscreen input type. This module ships with 5 in. display size. It also has color display. This particular unit incorporates modbus and rs-232 printer.
Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.
Pay
We accept credit cards from all major providers, as well as PayPal.
Ship
We offer worldwide shipping with UPS and DHL.
Warranty
We proudly offer a one year Automation Stop warranty on most products.
Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

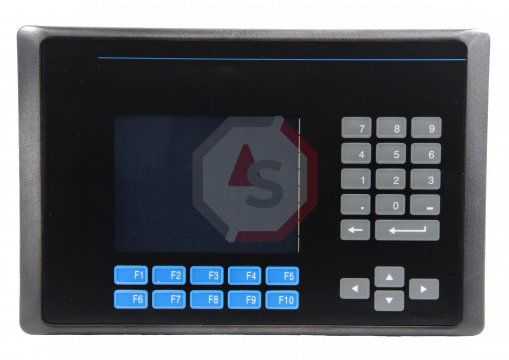

The Allen-Bradley 2711-B6C14 PanelView standard color terminal has a 6-inches active-matrix thin-film transistor (TFT) display with cold cathode fluorescent (CCF) backlight which supports a fixed palette of 32 standard EGA colors with a resolution of 320x234. This PanelView color terminal operates with the touch screen which has 128 (16 columns x 8 rows) touch cells, and the stainless steel domed membrane keypad which involves 10 function keys from F1 to F10 for navigation. The 2711-B6C14 terminal contains a single Modbus communication port which can be employed either as a half-duplex or as a master-slave protocol to communicate with other controllers like Modicon and GE and a single RS-232 port which can be connected to either a printer or to the RS-232 port of a computer for transferring files and applications. The Allen-Bradley 2711-B6C14 terminal contains 170 kilobytes random access memory (RAM) for runtime applications and 240 kilobytes nonvolatile flash memory. This terminal uses both 2711-NC13 and 2711-NC14 cables to upload and download application files between this terminal and the computer. The Allen-Bradley 2711-B6C14 color keypad and touch terminal supports an input voltage rating of 85/264 volts AC at frequencies from 43 hertz to 63 hertz with a maximum power consumption of 60 volt-amperes. The 2711-B6C14 terminal should be mounted in a panel or enclosure to protect the internal circuitry. This PanelView terminal works properly at 0 degrees to 50 degrees Celsius (32 degrees to 122 degrees Fahrenheit) for indoor applications and weighs approximately 2 kilograms (4.4 pounds) while shipping.
Technical Specifications
| Brand | Allen-Bradley / Rockwell Automation |
| Series | PanelView standard 600 color terminal |
| Part Number | 2711-B6C14 |
| Operator input | Touch screen and keypad |
| Display type | Color active matrix TFT |
| Display area (WxH) | 115 x 86 mm (4.54 x 3.4 in.) |
| Communication ports | Modbus communication port and RS-232 Printer Port |
| Resolution | 320 x 234 |
| Memory (Nonvolatile/RAM) | 240 KB/170 KB |
| Input voltage | 85…264V AC, 47…63 Hz |
| Power consumption | 60VA |
| Weight | 2.0 kg (4.4 lb) |
| Dimensions (HxWxD), approx. | 192 x 290 x 116 mm (7.55 x 11.40 x 4.57 in.) |
| Battery | Field replaceable |
| Keypad function keys | 10 function keys (F1…F10) |
FAQ
Question: Does Automation Stop offer repairs on the 2711-B6C14?
Answer: Yes. We offer repairs for the 2711-B6C14 and it comes with our 1 Year Automation Stop Warranty.
Question: What type of warranty comes with the Allen Bradley - HMI and 2711-B6C14?
Answer: If you buy the 2711-B6C14 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.
Question: Can I buy the 2711-B6C14 online?
Answer: Yes. Automation Stop sells the 2711-B6C14 online and you can check out for the quantity and condition listed available above.
Question: What is the manufacturer for the 2711-B6C14?
Answer: The 2711-B6C14 is made by Allen Bradley - HMI.
Question: What type of product is the 2711-B6C14?
Answer: The 2711-B6C14 is part of the Panelview 600 series.
Question: What Battery does the Allen Bradley Automation 2711-B6C14 have?
Answer: The Allen Bradley Automation 2711-B6C14 has a Field replaceable Battery.
Question: What Brand does the 2711-B6C14 have?
Answer: The 2711-B6C14 has a AB / Rockwell Automation Brand.
Question: What is the Communication ports of the 2711-B6C14?
Answer: The 2711-B6C14 has a Communication ports of Modbus communication port and RS-232 Printer Port.
Question: What Dimensions (HxWxD), approx. does the Allen Bradley Automation 2711-B6C14 have?
Answer: The Dimensions (HxWxD), approx. of the 2711-B6C14 is 192 x 290 x 116 mm (7.55 x 11.40 x 4.57 in.).
Question: What Display area (WxH) does the 2711-B6C14 have?
Answer: The Display area (WxH) of the Allen Bradley/Rockwell Automation 2711-B6C14 is 115 x 86 mm (4.54 x 3.4 in.).
Question: What Display type does the Allen Bradley Automation 2711-B6C14 have?
Answer: The 2711-B6C14 has a color active matrix thin-film-transistor (TFT) Display type.
Question: What Input voltage does the 2711-B6C14 have?
Answer: The Input voltage of the Allen-Bradley 2711-B6C14 is 85…264 volts alternating current (AC), 47…63 Hz.
Question: What is the key function keys of the 2711-B6C14?
Answer: The key function keys of the 2711-B6C14 is 10 function keys (F1…F10).
Question: What random-access memory (RAM) (Nonvolatile/RAM (random-access random-access memory (RAM))) does the 2711-B6C14 have?
Answer: The random-access memory (RAM) (Nonvolatile/RAM (random-access random-access memory (RAM))) of the Allen Bradley 2711-B6C14 is 240 KB/170 KB.
Question: What Operator input does the 2711-B6C14 have?
Answer: The 2711-B6C14 has a Touch screen and key Operator input.
Question: What is the unit Number of the Rockwell Automation 2711-B6C14?
Answer: The Rockwell Automation 2711-B6C14 has a part Number of 2711-B6C14.
Question: What Power consumption does the 2711-B6C14 have?
Answer: The 2711-B6C14 has a Power consumption of 60VA.
Question: What is the Resolution of the 2711-B6C14?
Answer: The Resolution of the 2711-B6C14 is 320 x 234.
Question: What Weight does the Allen Bradley-Rockwell Automation 2711-B6C14 have?
Answer: The Allen Bradley-Rockwell Automation 2711-B6C14 has a Weight of 2.0 kg (4.4 lb).
Series information for 2711-B6C14
For additional information about 2711-B6C14 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding 2711-B6C14.
| Revision Part # | Also Known As | Availability |
|---|---|---|
| 2711-B6C14/A | 2711-B6C14 Ser A, Series A, Rev A | Request a Quote |
