Allen-Bradley MPL-B320P-MJ72AA

âś“ In Stock

MPL-B320P-MJ72AA Image 1 thumbnail
MPL-B320P-MJ72AA Image 2 thumbnail
Manufacturer: Allen Bradley - Motors
Product Type: Automation Product
Part Number: MPL-B320P-MJ72AA
Series: MPL Servo Motors
UPC: 820919980435

Description:

This MPL-B320P-MJ72AA by Rockwell automation has a rated speed 5000 RPM servo motor with low inertia of 0.000078 kg m˛ and a part of voltage class 400 V AC. This product has a 2-inch magnetic stack, SpeedTec DIN with a right angle bend and 180° rotatable connector, and no brake. It operates at a rated 1.5 kW power, continuous 3.05 Nm at the stall, a peak of 7.91 Nm in a small time, and a 100 mm frame size by the IEC metric.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

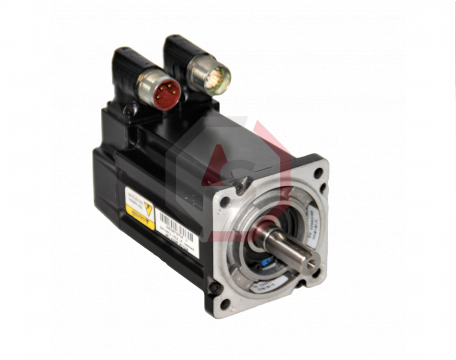

MPL-B320P-MJ72AA by Allen Bradley is a servo motor belonging to a low inertia series of motors. This particular model belongs to the alternating current (AC) 400 V voltage class with an IEC metric frame size 3 or you can say 100 mm. A maximum speed of 5000 RPM can be achieved with a low 0.000078 kg m² inertia and rated 1.5 kW power output. This motor has a rating of IP50 and IP66 which means that the enclosures are dust resistant. This does not mean that the motor is waterproof because the shaft is unsealed. The shaft is keyed, which is good to secure the components in the motor. Facing the shaft is a connecting port to connect the motor with other devices in the system. The SpeedTech DIN cable is used with a right-angle with a 180-degree rotation possibility. The maximum is 7.91 Nm torque in a short time period and a 3.05 Nm continuous torque at the stall. The magnetic stack ranges about 50.8 mm or 2 inches. The motor has no brakes meaning the value of the load is lost once the power shuts off. This motor follows a Hiperface protocol which states that the minimum number of wires are used inside the motor. This reduces the size and makes the motor more compact. The feedback system also includes a 1024 multi-turn absolute encoder. Including all the specifications and parts of the servo motor, this model weighs about 3.7 kg or 8.0 lbs. For best operational results, regular maintenance is mandatory.

Technical Specifications

MPN MPL-B320P-MJ72AA
Manufacturer Allen Bradley/Rockwell Automation
Series MP-Series Low-inertia Servo Motor with 100 mm to 165 mm Frame Size
Voltage Class 400V
Frame Size 100 mm
Magnetic Stack Length 2 in
Rated Speed 5000 rpm
Feeback Multi-turn high-resolution encoder
Shaft Key/Seal Shaft key/no shaft seal
Connectors Circular DIN, right angle, 180 degree rotatable
Brake No brake
Mounting Flange IEC Metric
Factory Designated Options Standard
We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the MPL-B320P-MJ72AA?

Answer: Yes. We offer repairs for the MPL-B320P-MJ72AA and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Allen Bradley - Motors and MPL-B320P-MJ72AA?

Answer: If you buy the MPL-B320P-MJ72AA through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the MPL-B320P-MJ72AA online?

Answer: Yes. Automation Stop sells the MPL-B320P-MJ72AA online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the MPL-B320P-MJ72AA?

Answer: The MPL-B320P-MJ72AA is made by Allen Bradley - Motors.


Question: What type of product is the MPL-B320P-MJ72AA?

Answer: The MPL-B320P-MJ72AA is part of the MPL Servo Motors series.


Question: Does the MPL-B320P-MJ72AA have a Brake?

Answer: No brake.


Question: What Connectors does the MPL-B320P-MJ72AA have?

Answer: The Connectors of the Allen Bradley-Rockwell Automation MPL-B320P-MJ72AA is Circular DIN, right angle, 180 degree rotatable.


Question: What kind of Factory Designated Options does the MPL-B320P-MJ72AA have?

Answer: The MPL-B320P-MJ72AA has Factory Designated Options Standard.


Question: What Feeback does the MPL-B320P-MJ72AA have?

Answer: The Allen Bradley/Rockwell Automation MPL-B320P-MJ72AA has a Multi-turn high-resolution encoder Feeback.


Question: What is the Frame Size of the MPL-B320P-MJ72AA?

Answer: The MPL-B320P-MJ72AA has a Frame Size of 100 mm.


Question: What is the Magnetic Stack Length of the MPL-B320P-MJ72AA?

Answer: The Magnetic Stack Length of the MPL-B320P-MJ72AA is 2 in.


Question: What Mounting Flange is included with the Allen Bradley Automation MPL-B320P-MJ72AA?

Answer: The MPL-B320P-MJ72AA has a IEC Metric Mounting Flange.


Question: What is the Rated Speed of the Allen Bradley/Rockwell Automation MPL-B320P-MJ72AA?

Answer: The Allen Bradley/Rockwell Automation MPL-B320P-MJ72AA has a Rated Speed of 5000 revolutions per minute (RPM).


Question: What Shaft Key/Seal is included with the Allen Bradley MPL-B320P-MJ72AA?

Answer: The MPL-B320P-MJ72AA has a Shaft key/no shaft seal Shaft Key/Seal.


Question: What Voltage Class does the Allen Bradley MPL-B320P-MJ72AA have?

Answer: The Voltage Class of the Allen Bradley MPL-B320P-MJ72AA is 400V.


Series information for MPL-B320P-MJ72AA

For additional information about MPL-B320P-MJ72AA check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding MPL-B320P-MJ72AA.

Revision Part # Also Known As Availability
MPL-B320P-MJ72AA/A MPL-B320P-MJ72AA Ser A, Series A, Rev A Request a Quote
