| Manufacturer: | Allen Bradley - Motors |
| Product Type: | Automation Product |
| Part Number: | MPL-B430P-SJ74AA |
| Series: | MPL Servo Motors |
Description:

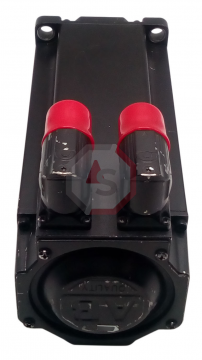

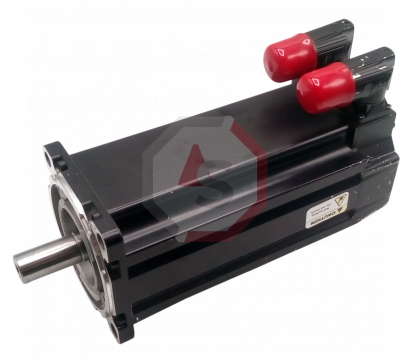

MPL-B430P-SJ74AA is based on smart motor technology and is the smaller size servo motor with higher torques by Allen Bradley. It has the following performance, electrical and mechanical features: 115 mm frame, 76.2 mm magnetic stack (mm: millimeters), 400 volts AC winding, 24 Volts DC brake (AC: alternating current, DC: direct current), DIN connectors, low inertia, 360 degrees feedback, keyed shaft, IEC free mounting holes, 5000 rev/min speed and 6.55 newton-meters continuous stall torque.
Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.
Pay
We accept credit cards from all major providers, as well as PayPal.
Ship
We offer worldwide shipping with UPS and DHL.
Warranty
We proudly offer a one year Automation Stop warranty on most products.
Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
The Allen Bradley MP series, MPL-B430P-SJ74AA, high output, low inertia brushless servo motor use unique design characteristics to reduce the motor size while nevertheless providing significantly more torque. It is a synchronous motor and features 400V-class windings. The MPL-B430P-SJ74AA requires an alternating current, and its winding voltage has an AC rating. Instead of the rotor winding, it has strong permanent magnets to generate a magnetic field, and its stack covers a total length of 3.00 inches. Due to this, this motor can achieve a speed of 5000 rpm ( revolutions / minute) while the size of the motor is relatively small. The module's frame is just 115 millimeters and the whole motor weight (including brake) is 16 lbs (pounds). But the dimensions of the frame match with the IEC 72-1 measurement, and this motor is a flat mounted type.
MPL-B430P-SJ74AA uses a traditional rotary encoder, a single-turn encoder, that delivers feedback for 360 degrees (one turn). It comes with a mechanical keyed shaft to provide good fitting. It has an electromechanical brake, which is DC operated (direct current). And, it needs 0.57 amperes to 0.704 amperes and 24 Volts DC. This brake is actually a holding brake. It is used to keep the load in place when the main power is dropped. Either servo drives are used to control it (through the automatic program), or operators can handle it by attaching an external supply. It has circular DIN contact connectors for all connections such as feedback, power supply, and brake.
Technical Specifications
| MPN | MPL-B430P-SJ74AA |
| Manufacturer | Allen Bradley/Rockwell Automation |
| Series | MP-Series Low-inertia Servo Motor with 100 mm to 165 mm Frame Size |
| Voltage Class | 400V |
| Frame Size | 115 mm |
| Magnetic Stack Length | 3 in |
| Rated Speed | 5000 rpm |
| Feeback | Single-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degree rotatable |
| Brake | 24V DC brake |
| Mounting Flange | IEC Metric |
| Factory Designated Options | Standard |
FAQ
Question: Does Automation Stop offer repairs on the MPL-B430P-SJ74AA?
Answer: Yes. We offer repairs for the MPL-B430P-SJ74AA and it comes with our 1 Year Automation Stop Warranty.
Question: What type of warranty comes with the Allen Bradley - Motors and MPL-B430P-SJ74AA?
Answer: If you buy the MPL-B430P-SJ74AA through Automationstop.com it comes with our 1 Year Warranty and no other warranties.
Question: Can I buy the MPL-B430P-SJ74AA online?
Answer: Yes. Automation Stop sells the MPL-B430P-SJ74AA online and you can check out for the quantity and condition listed available above.
Question: What is the manufacturer for the MPL-B430P-SJ74AA?
Answer: The MPL-B430P-SJ74AA is made by Allen Bradley - Motors.
Question: What type of product is the MPL-B430P-SJ74AA?
Answer: The MPL-B430P-SJ74AA is part of the MPL Servo Motors series.
Question: What is the Brake of the MPL-B430P-SJ74AA?
Answer: The MPL-B430P-SJ74AA has a Brake of 24 volts direct current brake.
Question: What Connectors does the Rockwell-Automation MPL-B430P-SJ74AA have?
Answer: The Connectors of the Rockwell-Automation MPL-B430P-SJ74AA is Circular DIN, right angle, 180 degree rotatable.
Question: What kind of Factory Designated Options does the MPL-B430P-SJ74AA have?
Answer: The MPL-B430P-SJ74AA has Factory Designated Options Standard.
Question: What Feeback does the MPL-B430P-SJ74AA have?
Answer: The MPL-B430P-SJ74AA has a Single-turn high-resolution encoder Feeback.
Question: What is the Frame Size of the MPL-B430P-SJ74AA?
Answer: The Frame Size of the Rockwell Automation MPL-B430P-SJ74AA is 115 mm .
Question: What Magnetic Stack Length does the Rockwell Automation MPL-B430P-SJ74AA have?
Answer: The Magnetic Stack Length of the Rockwell Automation MPL-B430P-SJ74AA is 3 in .
Question: What Mounting Flange is included with the Allen Bradley MPL-B430P-SJ74AA?
Answer: The Allen Bradley MPL-B430P-SJ74AA has a IEC Metric Mounting Flange.
Question: What is the Rated Speed of the Allen Bradley/Rockwell Automation MPL-B430P-SJ74AA?
Answer: The Rated Speed of the MPL-B430P-SJ74AA is 5000 revolutions per minute (RPM).
Question: What Shaft Key/Seal does the Allen-Bradley MPL-B430P-SJ74AA have?
Answer: The MPL-B430P-SJ74AA has a Shaft key/no shaft seal Shaft Key/Seal.
Question: What Voltage Class does the MPL-B430P-SJ74AA have?
Answer: The Rockwell Automation MPL-B430P-SJ74AA has a Voltage Class of 400V.
