| Manufacturer: | Allen Bradley - PLC |
| Product Type: | PLC/Programmable Logic Controller |
| Part Number: | 1746-NO8I |
| Series: | SLC 500 |
| UPC: | 10781180054560 |
Description:

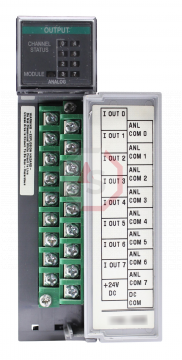

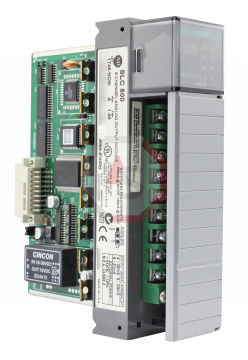

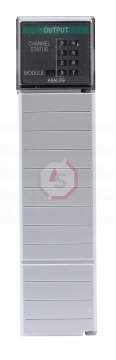

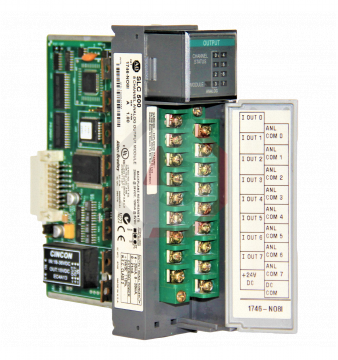

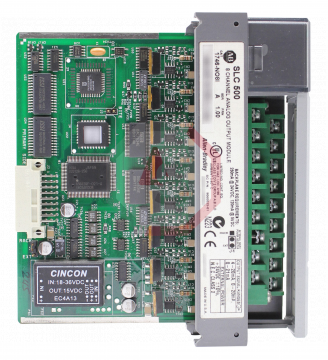

This Allen-Bradley SLC 500 Analog Output Module comes with 8-output channels. The output channels have a current range of 0 to 20mA and is compatible with SLC 500 fixed and modular style hardware. This unit can be fixed to any 1746 chassis and has a removable terminal block.
Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.
Pay
We accept credit cards from all major providers, as well as PayPal.
Ship
We offer worldwide shipping with UPS and DHL.
Warranty
We proudly offer a one year Automation Stop warranty on most products.
Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
The 1746-NO8I is a version of the 8-Point Analog Output Module manufactured by Allen Bradley/Rockwell Automation as part of the SLC 500 series. This analog circuit module has a 5-volt DC supply backplane, which supplies the entire SLC circuit, as well as a supply backplane of 24 volt DC. It has a maximum backplane current consumption of 250 milliamps at 24 volts DC and 120 milliamps at 5 volts DC. It comes with a removable terminal block and offers connections for eight analog output channels. This module is specially designed and intended to be connected with the current devices as well as analog voltages. The 1746-NO8I Analog Output Module provides eight output voltage channels and has no input channel. It features A Jumper, or J4, which are used to select whether the SLC backplane provides a power of 24 volt DC or an optional 24 volts external power supply. Allen Bradley 1746-NO8I Analog Output Module comes with a thermal dissipation of 6.6 watts. It has a maximum wire size of 14 - 24 AWG wire per terminal, with an output range of 0 – 21.5 milliamps. This module has an output coding or proportional scaling of 0 – 32,767, and an output D/A converter resolution of 16-bit with 366 nA per count. The module receives the power via SLC 500 chassis from the 5 volts DC and the 24 volts DC power supply. The system power must be turned off, including chassis power, as well as the external 24 volts DC power supply before installing the jumper.
Technical Specifications
| Brand | Allen Bradley/Rockwell Automation |
| Series | SLC 500 |
| Part Number | 1746-NO8I |
| Module Type | Analog Output Module |
| Outputs | 8 |
| Backplane Current (5 Volts) | 120 milliamps |
| Backplane Current (24 Volts) | 250 milliamps |
| Step Response | 1 millisecond |
| Thermal Dissipation | 6.6 Watts |
| Wire SIze | 14 to 24 AWG |
FAQ
Question: Does Automation Stop offer repairs on the 1746-NO8I?
Answer: Yes. We offer repairs for the 1746-NO8I and it comes with our 1 Year Automation Stop Warranty.
Question: What type of warranty comes with the Allen Bradley - PLC and 1746-NO8I?
Answer: If you buy the 1746-NO8I through Automationstop.com it comes with our 1 Year Warranty and no other warranties.
Question: Can I buy the 1746-NO8I online?
Answer: Yes. Automation Stop sells the 1746-NO8I online and you can check out for the quantity and condition listed available above.
Question: What is the manufacturer for the 1746-NO8I?
Answer: The 1746-NO8I is made by Allen Bradley - PLC.
Question: What type of product is the 1746-NO8I?
Answer: The 1746-NO8I is part of the SLC 500 series.
Question: What is the Backplane Current (24 Volts) of the 1746-NO8I?
Answer: The Allen Bradley 1746-NO8I has a Backplane Current (24 Volts) of 250 milliamps.
Question: What Backplane Current (5 Volts) does the 1746-NO8I have?
Answer: The Backplane Current (5 Volts) of the 1746-NO8I is 120 milliamps.
Question: What Brand does the Allen Bradley-Rockwell Automation 1746-NO8I have?
Answer: The 1746-NO8I has a Allen Bradley/Rockwell Automation Brand.
Question: What Module Type does the Allen Bradley-Rockwell Automation 1746-NO8I have?
Answer: The 1746-NO8I has a Analog Output Module Module Type.
Question: What Outputs does the 1746-NO8I have?
Answer: The Outputs of the 1746-NO8I is 8.
Question: What is the component Number of the 1746-NO8I?
Answer: The unit Number of the 1746-NO8I is 1746-NO8I .
Question: What Step Response does the Rockwell-Automation 1746-NO8I have?
Answer: The Rockwell-Automation 1746-NO8I has a Step Response of 1 millisecond.
Question: What Thermal Dissipation does the Allen Bradley-Rockwell Automation 1746-NO8I have?
Answer: The Allen Bradley-Rockwell Automation 1746-NO8I has a Thermal Dissipation of 6.6 Watts.
Question: What Wire SIze does the 1746-NO8I have?
Answer: The Allen Bradley-Rockwell Automation 1746-NO8I has a Wire SIze of 14 to 24 AWG.
Series information for 1746-NO8I
For additional information about 1746-NO8I check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding 1746-NO8I.
| Revision Part # | Also Known As | Availability |
|---|---|---|
| 1746-NO8I/A | 1746-NO8I Ser A, Series A, Rev A | Request a Quote |
