| Manufacturer: | Allen Bradley - PLC |
| Product Type: | PLC/Programmable Logic Controller |
| Part Number: | 1756-L1 |
| Series: | ControlLogix |
| UPC: | 10612598169532 |
Description:

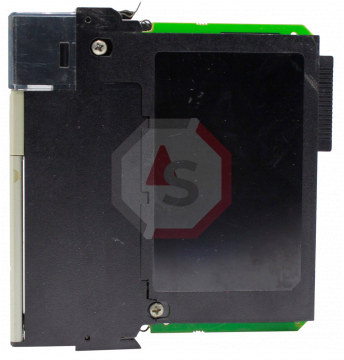

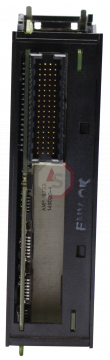

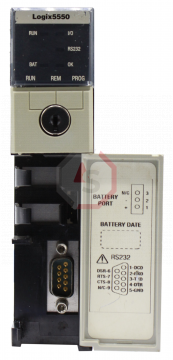

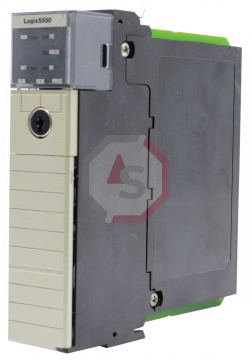

The Allen-Bradley ControlLogix 1756-L1 is a sophisticated control module produced by Rockwell Automation. The module offers a total user memory of 64 kilobytes to allow the user to store important files and data.
This unit does not ship with terminal blocks. Terminal blocks may be present in photographs for illustrative purposes.
Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.
Pay
We accept credit cards from all major providers, as well as PayPal.
Ship
We offer worldwide shipping with UPS and DHL.
Warranty
We proudly offer a one year Automation Stop warranty on most products.
Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
The Allen-Bradley ControlLogix 1756-L1 is a user-operated control module that can be used in industrial automation systems to improve the performance characteristics of various components of the control system. The control module can communicate with other devices in the control systems over a configured network. The DeviceNet or EtherNet/IP network can establish communication channels that allow the user to create a link between the control module and remote I/O devices such as keyboards, printers, and scanners. This allows the module to control several aspects of the automation system and offers the user an enhanced degree of control over the system. The module can be mounted in a NEMA-rated open enclosure that is designed with adequate clearances to facilitate ventilation within the space of the enclosure. This ensures that the module can be easily maintained and accessed for replacement and repair. An isolation voltage of 30 volts of continuous direct current is required to protect the device from external sources of power.
The Allen-Bradley ControlLogix 1756-L1 is equipped with a user memory of 64 kilobytes. This memory capacity allows the user to transfer and store files in the form of alphanumeric characters, numerical values, and statistics. The control modules can also be used to communicate with other independent modules across the backplane and enhance the overall efficiency of the control system.
Technical Specifications
| Brand | Allen-Bradley / Rockwell Automation |
| Series | ControlLogix 5550 Controllers |
| Part number | 1756-L1 |
| Module Type | Processor Module |
| User Memory | 64 kB |
| Enclosure | Open |
| Isolation Voltage | 30V Continuous |
| Operating Temperature | 32-140°F (0-60°C) |
| Minimum Operating Current | 2 mA at 10V DC |
| Maximum Operating Current | 3.5 mA at 30V DC |
| Maximum Off-State Input Current | 1.5 mA |
| Power Dissipation | 4.1W at 60°C |
| Backplane current (5V DC) | 120 mA |
| Backplane current (24V DC) | 2 mA |
| Version | 8.02.00 or later |
FAQ
Question: Does Automation Stop offer repairs on the 1756-L1?
Answer: Yes. We offer repairs for the 1756-L1 and it comes with our 1 Year Automation Stop Warranty.
Question: What type of warranty comes with the Allen Bradley - PLC and 1756-L1?
Answer: If you buy the 1756-L1 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.
Question: Can I buy the 1756-L1 online?
Answer: Yes. Automation Stop sells the 1756-L1 online and you can check out for the quantity and condition listed available above.
Question: What is the manufacturer for the 1756-L1?
Answer: The 1756-L1 is made by Allen Bradley - PLC.
Question: What type of product is the 1756-L1?
Answer: The 1756-L1 is part of the ControlLogix series.
Question: What is the Backplane current (24 volts direct current (DC)) of the 1756-L1?
Answer: The Allen-Bradley 1756-L1 has a Backplane current (24 volts direct current) of 2 mA.
Question: What Backplane current (5 volts direct current) does the 1756-L1 have?
Answer: The Backplane current (5 volts DC) of the 1756-L1 is 120 mA.
Question: What Brand does the Allen-Bradley 1756-L1 have?
Answer: The 1756-L1 has a Allen Bradley / Rockwell Automation Brand.
Question: What Enclosure is included with the 1756-L1?
Answer: The 1756-L1 has a Open Enclosure.
Question: What Isolation Voltage does the Allen-Bradley 1756-L1 have?
Answer: The Isolation Voltage of the Allen-Bradley 1756-L1 is 30 volts Continuous.
Question: What Maximum Off-State Input Current does the 1756-L1 have?
Answer: The Allen-Bradley 1756-L1 has a Maximum Off-State Input Current of 1.5 mA.
Question: What is the Maximum Operating Current of the 1756-L1?
Answer: The 1756-L1 has a Maximum Operating Current of 3.5 mA at 30 volts direct current.
Question: What is the Minimum Operating Current of the 1756-L1?
Answer: The Allen-Bradley 1756-L1 has a Minimum Operating Current of 2 mA at 10 volts DC (direct current).
Question: What Module Type is included with the Allen Bradley/Rockwell Automation 1756-L1?
Answer: The 1756-L1 has a Processor Module Module Type.
Question: What Operating Temperature does the Allen-Bradley 1756-L1 have?
Answer: The 1756-L1 has a Operating Temperature of 32-140°F (0-60°C).
Question: What is the component number of the Allen Bradley/Rockwell Automation 1756-L1?
Answer: The part number of the 1756-L1 is 1756-L1.
Question: What Power Dissipation does the 1756-L1 have?
Answer: The Power Dissipation of the Allen Bradley Automation 1756-L1 is 4.1W (watts)at 60°C.
Question: What User random-access memory (RAM) does the 1756-L1 have?
Answer: The User random-access memory (RAM) of the 1756-L1 is 64 kB.
Question: What is the Version of the 1756-L1?
Answer: The 1756-L1 has a Version of 8.02.00 or later.
Series information for 1756-L1
For additional information about 1756-L1 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding 1756-L1.
| Revision Part # | Also Known As | Availability |
|---|---|---|
| 1756-L1/A | 1756-L1 Ser A, Series A, Rev A | Request a Quote |
