Allen-Bradley 1769-OW8I

✓ In Stock

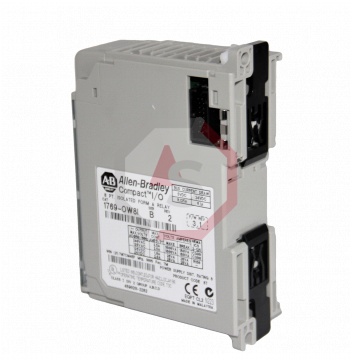

1769-OW8I Image 1 thumbnail
1769-OW8I Image 2 thumbnail
1769-OW8I Image 3 thumbnail
1769-OW8I Image 4 thumbnail
Manufacturer: Allen Bradley - PLC
Product Type: PLC/Programmable Logic Controller
Part Number: 1769-OW8I
Series: CompactLogix
UPC: 10662468992913

Description:

The 1769-OW8I is a compact I/O expansion module. This module has eight individually isolated form A relay output channels. It has two groups of four channels each. This module is designed for an operating voltage range of 5 to 265 VAC and 5 to 125 VDC. It is compatible for use with MicroLogix 1500 and CompactLogix controllers. The module is meant for panel or DIN rail mounting. The 1769-OW8I has a maximum heat dissipation of 2.83 W.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The Allen-Bradley 1769-OW8I compact AC/DC relay module has 8 individually isolated normally open outputs. The 1769-OW8I supports different voltage rating ranges from 5 volts AC to 265 volts AC and from 5 volts DC to 125 volts DC. This module can be employed by controllers such as the CompactLogix controller or the MicroLogix 1500 controller. The 1769-OW8I module can be employed in several applications mainly in the industrial field. For example, the 1769-OW8I module can be assembled with a 1769-ADN DeviceNet adapter or with a 1769-AENTR Ethernet adapter. The 1769-OW8I module can be mounted on well-grounded panels using two mounting M4 or #8 screws or on either EN 50 022 - 35 x 7.5 or EN 50 022 - 35 x 15 DIN rails. The minimum on-state current for this module is 10 milliamps and the output delay is 10 milliseconds. This Allen-Bradley 1769-OW8I compact AC/DC relay contact module can be supplied through 1769 Compact I/O power supplies such as 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 power supplies except when connected to a MicroLogix 1500 base with a current consumption of 125 milliamps. The 1769-OW8I Allen-Bradley module can be connected easily to either the controller or to an adjacent I/O module before or after mounting. The 1769-OW8I module dissipates an electrical power of 2.83 watts. This 1769-OW8I module is intended for use in a mainly industrial environment that is clean and dry (Pollution degree 2) and to circuits not exceeding Over Voltage Category II (IEC 60664-1). The 1769-OW8I relay contact module provides 2 isolated groups of 4 points each which permit to group and control both AC and DC loads on one module. This module weighs approximately 290 grams (0.64 pounds) while shipping. This Allen-Bradley module works properly at 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).

The 1769-OW8I module is a compact relay contact module designed and manufactured by Allen-Bradley/Rockwell Automation. The module has individually isolated outputs and it is intended for AC/DC operation. The 1769-OW8I module has an open enclosure and it includes certifications from the CE, EAC, RCM, and c-UL-us standards. The module has the following dimensions (H x W x D): 118 x 35 x 87 millimeters (4.65 x 1.38 x 3.43 inches). The height of the module increases to 138 mm (5.43 in.) with the mounting tabs taken into account. The 1769-OW8I module has a current rating of 2.5 amperes per point and 16 amperes per module. In addition to that, the module draws a current of 125 milliamperes at 5.1 volts and 100 milliamperes at 24 volts. The on-state current is 10 milliamperes at 5 volts DC and the maximum off-state current leakage is 0 milliamperes. The unit has a delay time of 10 milliseconds for both the on and off states. The module has a 0.68 N-m or 6 pounds on an inch of terminal screw torque and 0.46 N-m or 4.1 pounds on an inch of retaining screw torque. It supports DIN rail or panel mounting and it uses a single slot. The unit has an 8-module distance rating. The featured wire size is 22 to 14 AWG for solid wire or 22 to 16 AWG for stranded wire. The wire type should be Cu-90 degrees Celsius (194 degrees Fahrenheit). The replacement terminal block for this unit is the 1769-RTBN18.

Technical Specifications

Brand Allen-Bradley / Rockwell Automation
Series 1769 compact AC/DC individually isolated relay contact module
Part Number 1769-OW8I
Number of outputs 8 normally open, individually isolated (4 points/group)
Operating voltage range 5…265V AC, 5…125V DC
Current draw at 5.1V / 24V 125 mA / 100 mA
Heat dissipation 2.83 W
Current per module, max 16 A
Wire size and type 0.325… 2.080 mm2 (22…14 AWG) solid copper wire or 0.325…1.310 mm2 (22…16 AWG) stranded copper wire rated at 90 °C (194 °F ) insulation max
Current per point 2.5 A
Operating temperature range 0 °C...60 °C (32 °F...140 °F)
Dimensions (H x W x D), approx 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height including mounting tabs is 138 mm (5.43 in.)
Weight 290 g (0.64 lb)
Module location DIN rail or panel mount
Power supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Region of Manufacture* Malaysia
UNSPSC 32151705
Type PLC Output Module

*Region of Manufacture may vary
