| Manufacturer: | Allen Bradley - PLC |
| Product Type: | PLC/Programmable Logic Controller |
| Part Number: | 1771-AM1 |
| Series: | PLC 5 |
Description:

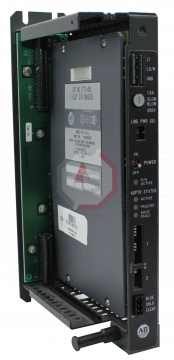

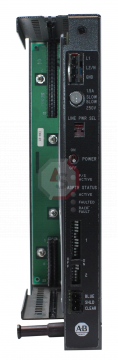

This 1771-AM1 is a single slot chassis that has an integrated remote I/O adapter and power supply unit. The hardware of the single slot chassis has an internal power supply unit and nominal input voltage requirements of 120/200 Volts AC at 50/60 Hertz frequency.
Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.
Pay
We accept credit cards from all major providers, as well as PayPal.
Ship
We offer worldwide shipping with UPS and DHL.
Warranty
We proudly offer a one year Automation Stop warranty on most products.
Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
This 1771-AM1 is a single slot chassis with an integrated remote I/O adapter and power supply unit. The hardware of the single slot chassis features an internal power supply with a nominal input voltage requirement of 120 Volts AC / 220 Volts AC at a frequency of 50/60 Hertz. The product belongs to the obsolete product family of PLC-5 controllers. The 1771-AM1 has a large size of 298 x 70 x 187 millimeters or 11.7 x 2.7 x 7.3 inches. Mounting screw slots are offered in this unit to accept direct mounting to backplane of the enclosure.
This 1771-AM1 single slot chassis has a remote I/O adapter (RIO) port that has compatibility with RIO network and supports data transfer speeds of 57.6k and 115.2k. It uses a Belden Blue Hose 9463 cable and the RIO communication protocol follows daisy chain topology. This PLC-5 1 slot chassis has an internal power unit and RIO adapter. It has a single slot I/O module and uses a 14-gauge stranded wire with 3/64 inches thick insulation. The selectable nominal ratings of 120 Volts AC at 50/60 Hertz and 220 Volts AC at 50/60 Hertz using a selectable switch and selectable input ranges of 97 to 132 Volts AC (RMS) and 194 to 264 Volts AC RMS. It has a real power of 30 Watts and an apparent power of 48 Volt-amperes. The module has a load reliant external transformer with a power rating of 75 Volt-amperes at 47 to 63 Hertz. The voltage isolation is examined at 2500 Volts DC for 1 second and it safeguards the internal circuitry by using 1.5 Amperes slow blow fuse.
Technical Specifications
| Nominal Input Voltage | 120 Volts AC, 220 Volts AC at 50/60 Hertz |
| Input Power | 30 Watts/48 Volt-amperes (Real/Apparent) |
| Dimensions (Appx.) | 2.875 x 11.75 x 7.375 inches (73 x 298.5 x 187.3 millimeters) |
| Weight (Appx.) | 3 pounds (1.35 kilograms) |
| I/O Module Capacity | 1 Single-Slot I/O Module |
| Operating Temperature | 0 to 60 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
| Relative Humidity | 5% to 95% (non-condensing) |
| Input Voltage Range | 97-132 Volts AC (rms), 194-264 Volts AC (rms) |
| Input Voltage Frequency | 47-63 Hertz |
| Isolation Voltage | 2500 Volts DC for 1 second |
| Fuse | 1.5 Ampere, Slow-Blow |
| Power Supply Output Voltage | 5.1 Volts DC (± 2.96 milliseconds) |
| Power Supply Output Current | 3.5 Amperes |
| Baud Rates | 57.6K, 115.2K |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Module Type | I/O Chassis |
| Power Supply Unit | 97-132 Volts AC/194-264 Volts AC |
| Operating Frequency | 50/60 Hertz |
| No. of I/O Module Slots | 1 Slot |
| Communication Protocol | Remote I/O |
| Communication Cable | Belden 9463 |
| Maximum Cable Distance | 1000 feet |
| Supported Baud Rates | 57.6K, 115.2K |
| Mount Type | Back Panel |
FAQ
Question: Does Automation Stop offer repairs on the 1771-AM1?
Answer: Yes. We offer repairs for the 1771-AM1 and it comes with our 1 Year Automation Stop Warranty.
Question: What type of warranty comes with the Allen Bradley - PLC and 1771-AM1?
Answer: If you buy the 1771-AM1 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.
Question: Can I buy the 1771-AM1 online?
Answer: Yes. Automation Stop sells the 1771-AM1 online and you can check out for the quantity and condition listed available above.
Question: What is the manufacturer for the 1771-AM1?
Answer: The 1771-AM1 is made by Allen Bradley - PLC.
Question: What type of product is the 1771-AM1?
Answer: The 1771-AM1 is part of the PLC 5 series.
Question: What is the Baud Rates of the 1771-AM1?
Answer: The Baud Rates of the 1771-AM1 is 57.6K, 115.2K.
Question: What Brand does the Allen Bradley/Rockwell Automation 1771-AM1 have?
Answer: The Allen Bradley/Rockwell Automation 1771-AM1 has a Allen Bradley Brand.
Question: What Communication Cable does the Allen Bradley/Rockwell Automation 1771-AM1 have?
Answer: The Communication Cable of the 1771-AM1 is Belden 9463.
Question: What Communication Protocol does the 1771-AM1 have?
Answer: The 1771-AM1 has a remote i/o Communication Protocol.
Question: What Dimensions (Appx.) does the 1771-AM1 have?
Answer: The 1771-AM1 has a Dimensions (Appx.) of 2.875 x 11.75 x 7.375 inch (73 x 298.5 x 187.3 millimeters).
Question: What is the Fuse of the 1771-AM1?
Answer: The Fuse of the 1771-AM1 is 1.5 Ampere, Slow-Blow.
Question: What input/output Module Capacity does the Rockwell-Automation 1771-AM1 have?
Answer: The Rockwell-Automation 1771-AM1 has a input/output Module Capacity of 1 Single-Slot input/output Module.
Question: What is the Input Power of the Allen Bradley 1771-AM1?
Answer: The Allen Bradley 1771-AM1 has a Input Power of 30 Watts/48 Volt-amperes (Real/Apparent).
Question: What Input Voltage Frequency does the Allen Bradley/Rockwell Automation 1771-AM1 have?
Answer: The Input Voltage Frequency of the 1771-AM1 is 47-63 Hertz.
Question: What is the Input Voltage Range of the 1771-AM1?
Answer: The Allen Bradley/Rockwell Automation 1771-AM1 has a Input Voltage Range of 97-132 Volts alternating current (AC) (rms), 194-264 Volts alternating current (AC) (rms).
Question: What is the Isolation Voltage of the Rockwell Automation 1771-AM1?
Answer: The Rockwell Automation 1771-AM1 has a Isolation Voltage of 2500 Volts direct current (DC) for 1 second.
Question: What is the Maximum Cable Distance of the 1771-AM1?
Answer: The Maximum Cable Distance of the 1771-AM1 is 1000 feet.
Question: What Module Type does the 1771-AM1 have?
Answer: The 1771-AM1 has a input/output Chassis Module Type.
Question: What Mount Type does the Rockwell Automation 1771-AM1 have?
Answer: The Rockwell Automation 1771-AM1 has a Back panel Mount Type.
Question: What is the No. of input/output Module Slots of the Allen Bradley/Rockwell Automation 1771-AM1?
Answer: The No. of input/output Module Slots of the 1771-AM1 is 1 Slot.
Question: What Nominal Input Voltage does the 1771-AM1 have?
Answer: The Nominal Input Voltage of the 1771-AM1 is 120 Volts AC (alternating current), 220 Volts AC (alternating current) at 50/60 Hertz.
Question: What Operating Frequency does the 1771-AM1 have?
Answer: The 1771-AM1 has a Operating Frequency of 50/60 Hertz.
Question: What Operating Temperature does the Allen Bradley Automation 1771-AM1 have?
Answer: The Operating Temperature of the Allen Bradley Automation 1771-AM1 is 0 to 60 degrees Celsius.
Question: What is the power supply Output Current of the 1771-AM1?
Answer: The 1771-AM1 has a power supply Output Current of 3.5 Amperes.
Question: What power supply component Output Voltage does the Allen-Bradley 1771-AM1 have?
Answer: The Allen-Bradley 1771-AM1 has a power supply unit Output Voltage of 5.1 Volts direct current (DC) (± 2.96 milliseconds).
Question: What power supply unit Unit does the Allen Bradley 1771-AM1 have?
Answer: The 1771-AM1 has a power supply unit Unit of 97-132 Volts AC (alternating current)/194-264 Volts AC (alternating current).
Question: What is the Relative Humidity of the 1771-AM1?
Answer: The Allen Bradley-Rockwell Automation 1771-AM1 has a Relative Humidity of 5% to 95% (non-condensing).
Question: What is the Storage Temperature of the 1771-AM1?
Answer: The Allen Bradley 1771-AM1 has a Storage Temperature of -40 to 85 degrees Celsius.
Question: What is the Supported Baud Rates of the Rockwell-Automation 1771-AM1?
Answer: The Rockwell-Automation 1771-AM1 has a Supported Baud Rates of 57.6K, 115.2K.
Question: What Weight (Appx.) does the 1771-AM1 have?
Answer: The 1771-AM1 has a Weight (Appx.) of 3 pounds (1.35 kilograms).
Series information for 1771-AM1
For additional information about 1771-AM1 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding 1771-AM1.
| Revision Part # | Also Known As | Availability |
|---|---|---|
| 1771-AM1/A | 1771-AM1 Ser A, Series A, Rev A | Request a Quote |
| 1771-AM1/B | 1771-AM1 Ser B, Series B, Rev B | Request a Quote |
