| Manufacturer: | Allen Bradley - PLC |
| Product Type: | PLC/Programmable Logic Controller |
| Part Number: | 1771-NIVR |
| Series: | PLC 5 |
Description:

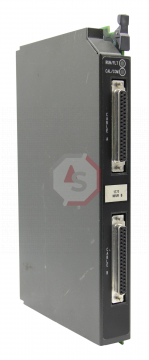

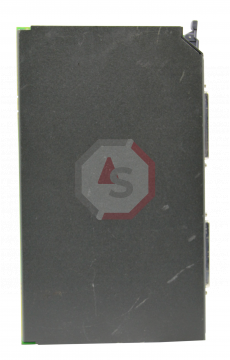

Part number 1771-NIVR is a mixed-signal analog input/output module manufactured by Allen-Bradley. Allen-Bradley supplies it as a part of the PLC 5 series and the Bulletin 1771 line of products. This 1771-NIVR analog mixed input module features four RTD inputs and four voltage/current inputs. The four voltage/current inputs is suitable for +/-5 volts DC and +/-20 milliamperes current. The rated backplane current load of the 1771-NIVR analog mixed input module is 1.5 amperes.
Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.
Pay
We accept credit cards from all major providers, as well as PayPal.
Ship
We offer worldwide shipping with UPS and DHL.
Warranty
We proudly offer a one year Automation Stop warranty on most products.
Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
The Allen-Bradley designed and produced 1771-NIVR is a high-resolution intelligent I/O module, which has come from the 1771-N series. It has four voltage inputs and current inputs rated at 5 volts and 20 milliamperes, respectively, and four RTD (resistance temperature detector) inputs set at 1-650 ohms. The 1771-NIVR is intended for use with the PLC-3, PLC5-250, and PLC-5 programmable controllers. A single 1771-NIVR module's maximum I/O backplane current consumption and maximum power dissipation at 5 volts are 1.2 amperes and 6 watts, respectively. The four voltage/current inputs have a operating range of 5.5 volts and 22 mA with a resistor. This device has an input resolution of 168 V/bit (0.7A/bit), as well as an input impedance larger than 10 mega-ohms. The inputs include overvoltage protection and are rated at 140 volts AC rms.
The 1771-NIVR's four RTD inputs are suitable for 1 – 650 ohm resistance. The input range is selectable depending on what type of RTD is utilized. With the 100 ohms rated Platinum RTD (EU standard), the range is -200 - +870 °C (-328 - +1598 °F). With the 100ohm Platinum RTD (US standard), the range has been -200 - +630 °C (-328 - +1166 °F). With the 10 ohms rated copper RTD, the range seems to be -200 - +260 °C. The highest input resolution value is 10 milliohm/bit (at 16 bits unipolar). The precision of the 100ohm Platinum and 120ohm nickel RTDs is 0.03 °C (0.0 6°F), while the resolution of the 10ohm copper RTD is 0.3°C (0.5°F). The display's resolution is set to 0.01 ohm / 0.1 °C by default. The RTD excitation current is typically set to 1 mA. Offset and gain drift are measured in milliohm/°C and 50 ppm/°C, respectively. 1/649 ohm is the calibration value. The temperature range accepted by the 1771-NIVR is 0 to 60 °C.
FAQ
Question: Does Automation Stop offer repairs on the 1771-NIVR?
Answer: Yes. We offer repairs for the 1771-NIVR and it comes with our 1 Year Automation Stop Warranty.
Question: What type of warranty comes with the Allen Bradley - PLC and 1771-NIVR?
Answer: If you buy the 1771-NIVR through Automationstop.com it comes with our 1 Year Warranty and no other warranties.
Question: Can I buy the 1771-NIVR online?
Answer: Yes. Automation Stop sells the 1771-NIVR online and you can check out for the quantity and condition listed available above.
Question: What is the manufacturer for the 1771-NIVR?
Answer: The 1771-NIVR is made by Allen Bradley - PLC.
Question: What type of product is the 1771-NIVR?
Answer: The 1771-NIVR is part of the PLC 5 series.
Series information for 1771-NIVR
For additional information about 1771-NIVR check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding 1771-NIVR.
| Revision Part # | Also Known As | Availability |
|---|---|---|
| 1771-NIVR/A | 1771-NIVR Ser A, Series A, Rev A | Request a Quote |
| 1771-NIVR/B | 1771-NIVR Ser B, Series B, Rev B | Request a Quote |
