Allen-Bradley 1771-WH

✓ In Stock

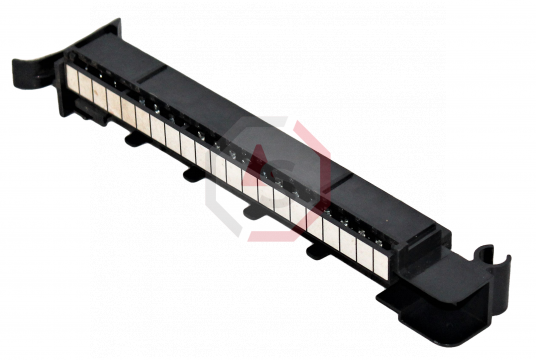

1771-WH Image 1 thumbnail
1771-WH Image 2 thumbnail
Manufacturer: Allen Bradley - PLC
Product Type: PLC/Programmable Logic Controller
Part Number: 1771-WH
Series: PLC 5
UPC: 10612598003874

Description:

The Allen-Bradley 1771-WH is a wiring arm. This component is provided as standard with I/O modules in the Bulletin 1771 series. This unit is an accessory component that includes 21 connection points. This wiring arm does not provide fuses at the contact circuits. It supports a maximum wire size of 14 AWG. It also supports up to 16 I/O modules. The component is made out of thermoplastic material and includes tin plated contacts.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The 1771-WH is a wiring accessory produced by Allen-Bradley. It is included in the 1771 series of Digital AC and DC input modules as an accessory wiring arm. This component is a general-purpose accessory that is compatible with multiple Allen-Bradley modules in the 1771 series. It allows the I/O modules to be connected to the plant wiring securely. The wiring arm features a built-in locking tab that secures the wire and prevents inadvertent disconnection. The wiring arm has 21 terminals available and can be used to connect up to 16 I/O modules. The wiring arm can be field wired. The supported I/O modules include the 1771-IND, 1771-IAD, 1771-IGD, 1771-IBD, 1771-ICD, 1771-OAD, 1771-OMD, 1771-OGD, 1771-OBD, and 1771-OBDS. This wiring arm does not include fuses on the terminals. An optional wiring arm with the catalog number 1771‐WHF incudes fuses and has one fuse available per output. This component connects with I/O modules using Tin plated contacts. Thiis wiring arm is made out of industrial thermoplastic material. It features a swinging design in the built-in chassis clamp that provides convenient access to the connected I/O modules. The wiring arm has dedicated connections for inputs and outputs. Connections for line power and ground are provided as well. The wiring arm supports wire sizes of up to 14 American Wire Gauge (AWG). Wires can be spade-lugged or clamped directly according to the requirements of the user’s application. This component has an approximate weight of 0.1 kilograms. The wiring arm has dimensions of 10 inches x 6 inches x 4 inches.

We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the 1771-WH?

Answer: Yes. We offer repairs for the 1771-WH and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Allen Bradley - PLC and 1771-WH?

Answer: If you buy the 1771-WH through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the 1771-WH online?

Answer: Yes. Automation Stop sells the 1771-WH online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the 1771-WH?

Answer: The 1771-WH is made by Allen Bradley - PLC.


Question: What type of product is the 1771-WH?

Answer: The 1771-WH is part of the PLC 5 series.


Series information for 1771-WH

For additional information about 1771-WH check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding 1771-WH.

Revision Part # Also Known As Availability
1771-WH/A 1771-WH Ser A, Series A, Rev A Request a Quote
1771-WH/B 1771-WH Ser B, Series B, Rev B Request a Quote
1771-WH/C 1771-WH Ser C, Series C, Rev C Request a Quote
1771-WH/D 1771-WH Ser D, Series D, Rev D Request a Quote
1771-WH/E 1771-WH Ser E, Series E, Rev E Request a Quote
1771-WH/F 1771-WH Ser F, Series F, Rev F Request a Quote
