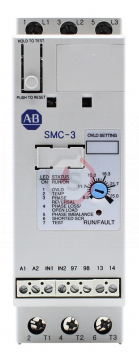

Allen-Bradley 150-C25NBD

✓ In Stock

Manufacturer: Allen Bradley - Miscellaneous
Product Type: Automation Product
Part Number: 150-C25NBD
Series: SMC-3

Description:

The 150-C25NBD is a Bulletin 150 SMC-3 Smart Motor Controller by Allen-Bradley and Rockwell Automation. It is a compact, simple to use, solid-state motor controller that is designed to operate 3-phase motors. Some of its main features include a built-in overload relay and SCR bypass contactor on all three phases.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

About

The 150-C25NBD is a Bulletin 150 SMC-3 Smart Motor Controller that is manufactured and branded by Allen-Bradley and Rockwell Automation. The 150-C25NBD is a compact, simple to use, solid-state motor controller that is designed to operate compatible 3-phase motors. Main features for the 150-C25NBD include a built-in overload relay and SCR bypass contactor on all three phases; this allows a smaller footprint than other comparable soft starters that the 150-C25NBD competes with. It is designed for a variety of applications, including chillers, pumps, conveyors, and crushers. The 150-C25NBD has different modes of operation, including soft start, current limit start, soft stop, and kick start. It is compliant with a variety of standards, including UL 508, CSA C22.2 (No. 14), EN/IEC 60947-4-2, cULus Listed, and CE Marked.

The 150-C25NBD has an Amperage rating of 25 Amperes, an open enclosure type rating, and an input line voltage of 200…460 Volts AC, 3-Phase, 50/60 Hertz. The 150-C25NBD has a control voltage of 100…240 Volts AC. Standard features of the 150-C25NBD include selectable start times of 2, 5, 10, 15, 20, 25, or 30 seconds, selectable initial torque of 0%, 25%, 35%, and 65% of locked rotor torque, and selectable current limits of 150%, 250%, 350%, and 450% of full load current. UL/CSA/NEMA electrical ratings include a rated operation voltage of 200…480 Volts AC and 200…600 Volts AC. Rated insulation voltage is 600 Volts AC and dielectric withstand is 2200 Volts AC. The 150-C25NBD has an operating frequency of 50/60 Hertz and is designed for 3-phase only. The 150-C25NBD has a rated impulse voltage of 6 Kilovolts and a DV/DT protection of 1000 Volts per microsecond.

Technical Specifications

MPN 150-C25NBD
Manufacturer Allen Bradley / Rockwell Automation
Series SMC-3 Controller
Controller Type SMC-3
Amps 25 A
Enclosure Type Open
Voltage 100...240V AC
Brand Allen-Bradley/Rockwell Automation
Bulletin 150
Product Type SMC-3 Smart Motor Controller
Main Features Built-in Overload Relay, SCR Bypass Contactor (All 3 Phases)
Applications Chillers, Pumps, Conveyors, Crushers
Modes of Operation Soft Stsrt, Current Limit Start, Soft Stop, Kick Start
Standards UL 508, CSA C22.2 (No. 14), EN/IEC 60947-4-2, cULus Listed, CE Marked
Amperage Rating 25 Amperes
Enclosure Type Rating Open
Input Line Voltage 200...460 Volts AC, 3-Phase, 50/60 Hertz

We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.

If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the 150-C25NBD?

Answer: Yes. We offer repairs for the 150-C25NBD and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Allen Bradley - Miscellaneous and 150-C25NBD?

Answer: If you buy the 150-C25NBD through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the 150-C25NBD online?

Answer: Yes. Automation Stop sells the 150-C25NBD online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the 150-C25NBD?

Answer: The 150-C25NBD is made by Allen Bradley - Miscellaneous.


Question: What type of product is the 150-C25NBD?

Answer: The 150-C25NBD is part of the SMC-3 series.


Question: What is the Amperage Rating of the 150-C25NBD?

Answer: The Amperage Rating of the Allen Bradley-Rockwell Automation 150-C25NBD is 25 Amperes.


Question: What is the amperes of the 150-C25NBD?

Answer: The amperes of the 150-C25NBD is 25 A.


Question: What Applications are included with the 150-C25NBD?

Answer: The Allen Bradley Automation 150-C25NBD has Applications Chillers, Pumps, Conveyors, Crushers.


Question: What Brand is included with the Allen Bradley/Rockwell Automation 150-C25NBD?

Answer: The Allen Bradley/Rockwell Automation 150-C25NBD has a Allen Bradley (AB)/Rockwell Automation Brand.


Question: What is the Bulletin of the Rockwell-Automation 150-C25NBD?

Answer: The 150-C25NBD has a Bulletin of 150.


Question: What Controller Type does the Allen Bradley-Rockwell Automation 150-C25NBD have?

Answer: The Controller Type of the Allen Bradley-Rockwell Automation 150-C25NBD is SMC-3.


Question: What Enclosure Type is included with the 150-C25NBD?

Answer: The Allen Bradley/Rockwell Automation 150-C25NBD has a Open Enclosure Type.


Question: What Enclosure Type Rating does the 150-C25NBD have?

Answer: The Allen-Bradley 150-C25NBD has a Open Enclosure Type Rating.


Question: What Input Line Voltage does the Allen Bradley Automation 150-C25NBD have?

Answer: The Allen Bradley Automation 150-C25NBD has a Input Line Voltage of 200...460 Volts alternating current (AC), 3-Phase, 50/60 Hertz.


Question: What Main Features does the 150-C25NBD have?

Answer: The 150-C25NBD has a Main Features of Built-in Overload Relay, SCR Bypass contactor component (All 3 Phases).


Question: What Modes of Operation is included with the Allen-Bradley 150-C25NBD?

Answer: The Allen-Bradley 150-C25NBD has a Soft Stsrt, Current Limit Start, Soft Stop, Kick Start Modes of Operation.


Question: What Product Type does the Rockwell-Automation 150-C25NBD have?

Answer: The 150-C25NBD has a Product Type of SMC-3 Smart Motor Controller.


Question: Does the Rockwell Automation 150-C25NBD have a Standards?

Answer: UL 508, CSA C22.2 (No. 14), EN/IEC 60947-4-2, cULus Listed, CE Marked.


Question: What is the Voltage of the 150-C25NBD?

Answer: The Voltage of the Allen Bradley/Rockwell Automation 150-C25NBD is 100...240 volts AC (alternating current).


Series information for 150-C25NBD

For additional information about 150-C25NBD check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding 150-C25NBD.

Revision Part # Also Known As Availability
150-C25NBD/A 150-C25NBD Ser A, Series A, Rev A Request a Quote
150-C25NBD/B 150-C25NBD Ser B, Series B, Rev B Request a Quote
