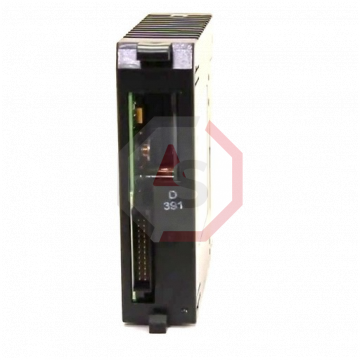

Emerson - GE Fanuc IC694DSM324

IC694DSM324 Image 1 thumbnail
IC694DSM324 Image 2 thumbnail
IC694DSM324 Image 3 thumbnail
IC694DSM324 Image 4 thumbnail
IC694DSM324 Image 5 thumbnail
IC694DSM324 Image 6 thumbnail
Manufacturer: Emerson - GE Fanuc
Product Type: Automation Product
Part Number: IC694DSM324
Series: RX3i PacSystem
UPC: 799705793392

Description:

The IC694DSM324 is a Motion Controller Module that is manufactured by GE Fanuc automation as a part of the RX3i PACSystem. This multi-axis module can support follower control loop disabled or standard mode and follower control loop enabled or follower mode.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The IC694DSM324 is a Motion Controller Module from GE Fanuc Automation. This multi-axis motion controller module can support two different modes: follower control loop disabled or standard mode, and follower control loop enabled or follower mode. It includes an electronic CAM functionality, switch inputs for the servo axis, and an analog I/O port for connecting the module with a computer. For programming and configuration, the module uses a single point of connection and the firmware is saved in flash memory and can be updated using subroutines. It has non-volatile storage that can store up to ten (10) programs and forty (40) subroutines. The module also includes a powerful set of motion program instructions that can be used by up to 4 axes.

The IC694DSM324 includes eight (8) LED indicators to display the working status of the module. The STATUS LED, when ON, indicates that the module is working properly. If the STATUS LED is OFF, it indicates that either the module is non-functional or has an error. During the programming and configuring mode, the CONFIG LED is ON. FSSB LED turns ON when FSSB communication is established, while it blinks during the connection set up. The axis-enabled LED indicators are ON when the 1 to 4 axis of the module are enabled. The FSSB connectors of the module allow fiber connections to servo amplifiers to exchange the commands and instructions and for diagnostics. The module also includes a protection cap to avoid damages. The RJ11 COMM port of the module can be used to download the firmware updates. It has two power ports for 5 Volts DC and 24 Volts DC power. The IC694DSM324 needs to be connected to the frame ground using the ground terminal. The grounding resistance of the module should not be more than 100 ohms.

Technical Specifications

Analog Inputs 2
Power Consumption 1360 milliamperes @ 5 Volts DC
Module Type Servo Motion
Backplane Support Universal Backplane
Analog Outputs 2
Power Supply Voltage 5 Volts From Backplane
Power Supply Current Draw by DSM 860 milliamperes plus encoder supply current
Available +5V Current/Module to supply external encoder, if used 500 milliamperes
Input/Output Connectors 5 Volts DC and 24 Volts DC Input/Output
Number of DSM324i Modules in PACSystems RX3i Main Backplane Up to 5 DSM324i modules in RX3i Main Backplane with Power Supply PWR040
We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the IC694DSM324?

Answer: Yes. We offer repairs for the IC694DSM324 and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Emerson - GE Fanuc and IC694DSM324?

Answer: If you buy the IC694DSM324 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the IC694DSM324 online?

Answer: Yes. Automation Stop sells the IC694DSM324 online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the IC694DSM324?

Answer: The IC694DSM324 is made by Emerson - GE Fanuc.


Question: What is the Analog Inputs of the IC694DSM324?

Answer: The IC694DSM324 has a Analog Inputs of 2.


Question: What is the Analog Outputs of the IC694DSM324?

Answer: The Rockwell Automation IC694DSM324 has a Analog Outputs of 2.


Question: What Available +5 volts Current/Module to supply external encoder, if used does the Allen Bradley/Rockwell Automation IC694DSM324 have?

Answer: The Allen Bradley/Rockwell Automation IC694DSM324 has a Available +5 volts Current/Module to supply external encoder, if used of 500 milliamperes.


Question: What Backplane Support is included with the Allen Bradley-Rockwell Automation IC694DSM324?

Answer: The IC694DSM324 has a Universal Backplane Backplane Support.


Question: What Input/Output Connectors does the Allen Bradley-Rockwell Automation IC694DSM324 have?

Answer: The Input/Output Connectors of the IC694DSM324 is 5 Volts DC and 24 Volts DC Input/Output.


Question: What Module Type is included with the Rockwell Automation IC694DSM324?

Answer: The IC694DSM324 has a Servo Motion Module Type.


Question: What Number of DSM324i Modules in PACSystems RX3i Main Backplane does the Allen-Bradley IC694DSM324 have?

Answer: The Number of DSM324i Modules in PACSystems RX3i Main Backplane of the IC694DSM324 is Up to 5 DSM324i modules in RX3i Main Backplane with power supply unit PWR040.


Question: What Power Consumption does the IC694DSM324 have?

Answer: The Power Consumption of the Allen-Bradley IC694DSM324 is 1360 milliamperes @ 5 Volts DC.


Question: What power supply unit Current Draw by DSM does the IC694DSM324 have?

Answer: The power supply unit Current Draw by DSM of the Allen-Bradley IC694DSM324 is 860 milliamperes plus encoder supply current.


Question: What power supply Voltage does the IC694DSM324 have?

Answer: The power supply unit Voltage of the IC694DSM324 is 5 Volts From Backplane.


Series information for IC694DSM324

For additional information about IC694DSM324 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding IC694DSM324.
