Emerson - GE Fanuc IC694MDL741

✓ In Stock

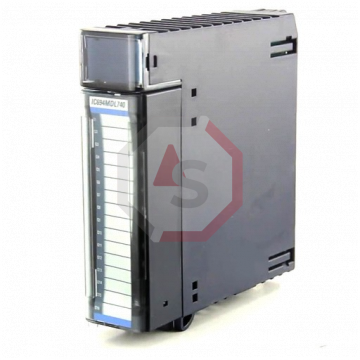

IC694MDL741 Image 1 thumbnail
IC694MDL741 Image 2 thumbnail
IC694MDL741 Image 3 thumbnail
IC694MDL741 Image 4 thumbnail
IC694MDL741 Image 5 thumbnail
IC694MDL741 Image 6 thumbnail
Manufacturer: Emerson - GE Fanuc
Product Type: Automation Product
Part Number: IC694MDL741
Series: RX3i PacSystem
UPC: 700843148425

Description:

The IC694MDL741 is a Negative Logic Output Module with sixteen (16) output points which are separated into two (2) groups of eight (8) output points. The output attributes are compatible with load devices like motor starters, solenoids, and indicators.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The IC694MDL741 is a 12.0/24.0 Volt DC Negative Logic 0.5 Ampere Output Module. It offers 16 output points which are divided into two groups with each having 8 output points. Each group has a common power output terminal. This negative logic, 0.5 Ampere, 16-Point Output Module has many negative logic attributes as it sinks current (A) from the loads to the negative power bus or user common. The output devices are attached between the positive power bus and the output terminals. The output features are also very compatible with a variety of load devices including motor starters, solenoids, and indicators. Users must supply the power from an external source for the operation of field instruments. Each light emitting diode (LED) can indicate the status of each output. No fuse is available on this module. The IC694MDL741 is a low voltage module that can be easily indicated by the blue bands labeled on the module. This easy to install 16-Point Output Module can be installed in any input/output (I/O) slot in an RX-3i system.

The output voltage range of this negative logic module is from 12 to 24 Volts DC. The output voltage drop is 0.5 Volts maximum. The ON response time and OFF response time is 2 milliseconds maximum. The output current is 0.5 Amperes maximum per point and 2 Amperes maximum per common. The off-state leakage is 1 milliampere maximum. The power consumption is 110 milliamperes from 5 Volts bus on the backplane when all outputs are ON.

Technical Specifications

Voltage Rating 12/24 VDC
Output Voltage Range 12-24 VDC
Isolation 250 VAC Continuous for Field to Backplane and to Frame Ground, 1500 VAC for 60 Seconds
Isolation for Group to Group 250 VAC Continuous, 1500 VAC for 60 Seconds
Outputs per Module Sixteen (16)
Output Current 0.5 Amperes max., per Point, 2 Amperes max., per Common
Power Consumption 110 milliamperes from 5 Volt Bus on Backplane (All Outputs ON)
Output Potential Drop 0.5 Volts, max.
Off-State Leakage 1 milliampere, max.
ON and OFF Response Time 2 milliseconds, max.
We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the IC694MDL741?

Answer: Yes. We offer repairs for the IC694MDL741 and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Emerson - GE Fanuc and IC694MDL741?

Answer: If you buy the IC694MDL741 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the IC694MDL741 online?

Answer: Yes. Automation Stop sells the IC694MDL741 online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the IC694MDL741?

Answer: The IC694MDL741 is made by Emerson - GE Fanuc.


Question: What is the Isolation of the Allen Bradley Automation IC694MDL741?

Answer: The Isolation of the IC694MDL741 is 250 voltage alternating current (VAC) Continuous for Field to Backplane and to Frame Ground, 1500 voltage alternating current (VAC) for 60 Seconds.


Question: What Isolation for Group to Group does the Allen Bradley-Rockwell Automation IC694MDL741 have?

Answer: The IC694MDL741 has a Isolation for Group to Group of 250 voltage alternating current (VAC) Continuous, 1500 voltage alternating current (VAC) for 60 Seconds.


Question: What Off-State Leakage does the IC694MDL741 have?

Answer: The IC694MDL741 has a Off-State Leakage of 1 milliampere, max..


Question: What is the ON and OFF Response Time of the IC694MDL741?

Answer: The Rockwell Automation IC694MDL741 has a ON and OFF Response Time of 2 milliseconds, max..


Question: What Output Current does the IC694MDL741 have?

Answer: The Allen-Bradley IC694MDL741 has a Output Current of 0.5 Amperes max., per Point, 2 Amperes max., per Common.


Question: What is the Output Potential Drop of the IC694MDL741?

Answer: The IC694MDL741 has a Output Potential Drop of 0.5 Volts, max..


Question: What Output Voltage Range does the Allen Bradley Automation IC694MDL741 have?

Answer: The Output Voltage Range of the IC694MDL741 is 12-24 VDC.


Question: What is the Outputs per Module of the IC694MDL741?

Answer: The Outputs per Module of the IC694MDL741 is Sixteen (16).


Question: What is the Power Consumption of the IC694MDL741?

Answer: The IC694MDL741 has a Power Consumption of 110 milliamperes from 5 Volt Bus on Backplane (All Outputs ON).


Question: What is the Voltage Rating of the Rockwell Automation IC694MDL741?

Answer: The Voltage Rating of the IC694MDL741 is 12/24 VDC.


Series information for IC694MDL741

For additional information about IC694MDL741 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding IC694MDL741.
