| Manufacturer: | Emerson - GE Fanuc |
| Product Type: | Automation Product |
| Part Number: | IC695ALG412 |
| Series: | RX3i PacSystem |
| UPC: | 47537258603 |
Description:

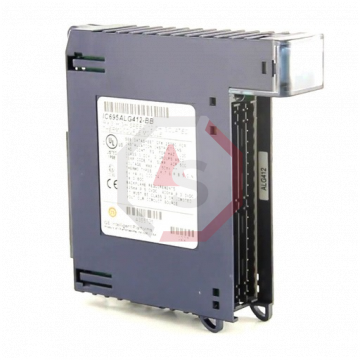

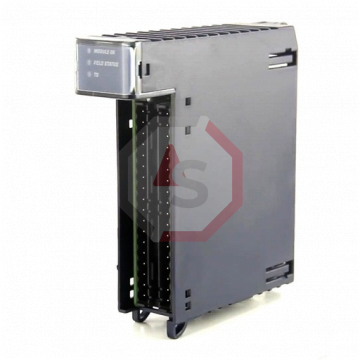

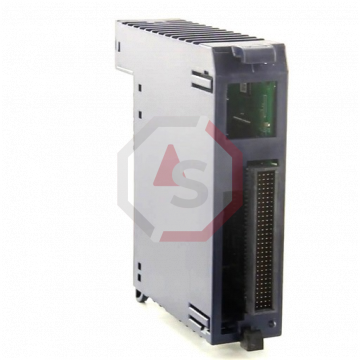

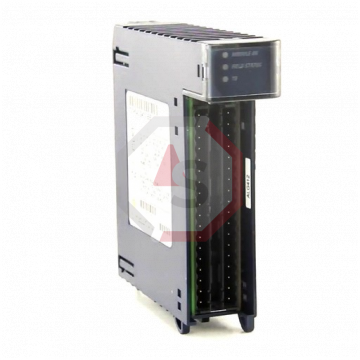

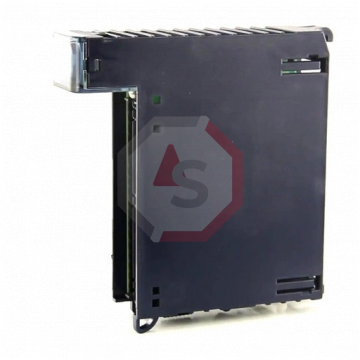

The GE Fanuc IC695ALG412 is a PACSystem RX3i module. It is a type of strain gauge input module. It comes equipped with twelve (12) input channels with isolated differential thermocouple. This device can be configured individually for the following Thermocouple types S, B, N, C, J, K, T, E, or R. It can further be configured for the following millivolts signals �150mV or �50mV. It can convert Sigma-Delta analog to digital converter.
Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.
Pay
We accept credit cards from all major providers, as well as PayPal.
Ship
We offer worldwide shipping with UPS and DHL.
Warranty
We proudly offer a one year Automation Stop warranty on most products.
Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
The IC695ALG412 is a PACSystems RX3i Thermocouple Input module that is manufactured by GE Fanuc Emerson. It supplies 20 isolated differential thermocouple input channels and provides a 10 decibel noise rejection improvement over the ALG312 Thermocouple Input module. The IC695ALG412 has many features, including its software configurability, thermocouple linearization based on ITS-90, and support of hot removal and insertion. It also offers 32-bit IEEE floating point or 16 bit integer input data format selectable per channel, temperature units selectable in degrees Celsius and Fahrenheit, user scaling, programmable notch filter from 2.3 to 28 Hertz per channel, and wire-off (open circuit) condition support for all inputs. The IC695ALG412 requires an external power source of isolated +24 Volts DC and the source must be connected using the TB1 connected located on the left side of the RX3i Backplane.
Specifications for the IC695ALG412 include 12 individually isolated channels, a resolution of 11.5 to 16 bits, and an integration time for channels that is configurable between 15 and 120 milliseconds. Measurement units used for the IC695ALG412 are degrees Celsius and Fahrenheit and Voltage. This module has a CJC measurement resolution of 0.01 degree (Celsius or Fahrenheit) for temperatures between 0 and 60 degrees Celsius with a CJC temperature accuracy of +/- 1.5 degrees Celsius typical and +/- 3.0 degrees Celsius maximum (when using IC695ACC600A/B). Channel-to-channel crosstalk is 70 decibels minimum and common mode rejection is 110 decibels for all filters, 50/60 Hertz. It has a backplane requirement of 400 milliamperes at 3.3 Volts and 425 milliamperes at 5.0 Volts.
The GE Fanuc IC695ALG412 PACSystem RX3i Module comes with a resolution of 32 bit IEEE floating point. The input data format required by this module is (in 32-bit field) 16-bit integer. This module belongs to the analog input module series PACSystem RX3i from Allen-Bradley. There are a total of twelve (12) isolated differential input channels. These are compatible with the following millivolt signal ±150mV or ±50mV. Furthermore, it is compatible with the following Thermocouple instrument types - R, K, S, E, J, B, N, T, C. Using strain gauges, this module can be used with direct interface thus making signal conditioners, temperature applications, heat transmitters, and other such devices unnecessary.
Using the PCI Bus, the IC695ALG412 GE Fanuc PACSystem RX3i Module conveniently attaches itself to the RX3i universal backplane. This module comes equipped with several self-diagnostic features such as open wire, high positive/negative rate of change, high-high, low, low-low channel, and short circuit diagnostics. The built-in channel-to-channel continuous isolation rating on this module is 250 volts alternate current. For upgraded noise rejection, this module comes with a 10 dB rating. The input impedance on this module is >=500k ohm. The resolution on this module is 32-bit IEEE floating-point. The IC695ALG412 GE Fanuc RX3i PACSystem module comes with circuitry that supports Sigma-Delta analog to digital converter type.
The GE Fanuc IC695ALG412 RX3i PACSystem module requires the use of removable terminal blocks (RTB). The compatible removable terminal blocks for this module are IC694TBSx32, IC694TBBx32, or IC694TBC032. 425 milliamperes at 5 volts and 400 milliamperes at 3.3 volts are this device's current rating. 3.3 volts and 400 milliamperes or 5 volts and 425 milliamperes is the internal power rating on this module. The update rate on this module is 15 milliseconds to 120 milliseconds.
Technical Specifications
| Brand | GE Fanuc Emerson |
| Number of Channels | 12 Individually Isolated Channels |
| Resolution | 11.5 to 16 Bits |
| Integration Time for 12 Channels | Configurable from 15 to 120 milliseconds |
| Measurement Units | Degrees (Celsius, Fahrenheit), Voltage |
| Channel-to-Channel Crosstalk | 70 decibels, min. |
| Common Mode Rejection | All Filters, 50/60 Hertz: 110 decibels |
| Backplane Power Requirements | 3.3 Volts: 400 milliamperes 5.0 Volts: 425 milliamperes |
| Input Impedance | Voltage: 500k Ohms |
| Power Dissipation with Module | 3.5 Watts, max. |
FAQ
Question: Does Automation Stop offer repairs on the IC695ALG412?
Answer: Yes. We offer repairs for the IC695ALG412 and it comes with our 1 Year Automation Stop Warranty.
Question: What type of warranty comes with the Emerson - GE Fanuc and IC695ALG412?
Answer: If you buy the IC695ALG412 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.
Question: Can I buy the IC695ALG412 online?
Answer: Yes. Automation Stop sells the IC695ALG412 online and you can check out for the quantity and condition listed available above.
Question: What is the manufacturer for the IC695ALG412?
Answer: The IC695ALG412 is made by Emerson - GE Fanuc.
Question: What Backplane Power Requirements does the Allen-Bradley IC695ALG412 have?
Answer: The IC695ALG412 has a Backplane Power Requirements of 3.3 Volts: 400 milliamperes 5.0 Volts: 425 milliamperes.
Question: What Brand is included with the Allen Bradley Automation IC695ALG412?
Answer: The Allen Bradley Automation IC695ALG412 has a GE Fanuc Emerson Brand.
Question: What Channel-to-Channel Crosstalk does the IC695ALG412 have?
Answer: The Channel-to-Channel Crosstalk of the IC695ALG412 is 70 decibels, min..
Question: What Common Mode Rejection does the Allen-Bradley IC695ALG412 have?
Answer: The Common Mode Rejection of the IC695ALG412 is All Filters, 50/60 Hertz: 110 decibels.
Question: What Input Impedance does the IC695ALG412 have?
Answer: The Input Impedance of the Allen Bradley/Rockwell Automation IC695ALG412 is Voltage: 500k Ohms.
Question: What is the Integration Time for 12 Channels of the IC695ALG412?
Answer: The Integration Time for 12 Channels of the Allen Bradley Automation IC695ALG412 is Configurable from 15 to 120 milliseconds.
Question: What kind of Measurement Units does the Allen Bradley-Rockwell Automation IC695ALG412 have?
Answer: The IC695ALG412 includes Degrees (Celsius, Fahrenheit), Voltage for its Measurement Units.
Question: What is the Number of Channels of the Allen Bradley Automation IC695ALG412?
Answer: The IC695ALG412 has a Number of Channels of 12 Individually Isolated Channels.
Question: What Power Dissipation with Module does the IC695ALG412 have?
Answer: The Power Dissipation with Module of the IC695ALG412 is 3.5 Watts, max..
Question: What is the Resolution of the IC695ALG412?
Answer: The Resolution of the IC695ALG412 is 11.5 to 16 Bits.
Series information for IC695ALG412
For additional information about IC695ALG412 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding IC695ALG412.
