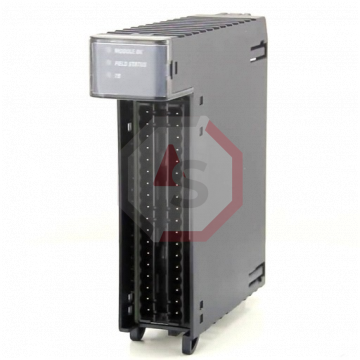

Emerson - GE Fanuc IC695ALG600

✓ In Stock

IC695ALG600 Image 1 thumbnail
IC695ALG600 Image 2 thumbnail
IC695ALG600 Image 3 thumbnail
IC695ALG600 Image 4 thumbnail
IC695ALG600 Image 5 thumbnail
Manufacturer: Emerson - GE Fanuc
Product Type: Automation Product
Part Number: IC695ALG600
Series: RX3i PacSystem
UPC: 347129212533

Description:

The IC695ALG600 GE Fanuc is an Analog Input Module. It comes equipped with 8 Channels. It features thermocouple resistance. It belongs to the GE Fanuc RX3i Series. It comes equipped with 8 general purpose input channels. Furthermore, there are another 2 Cold Junction Compensation (CJC) channels. It must be installed with an RX3i Universal Backplane. It is a Universal Analog type module. It comes with support for 8 input channels.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The GE Fanuc Emerson IC695ALG600 is a configurable analog module that has two CJC channels and eight (8) channels which are grouped into two groups of four. The IC695ALG600 inputs are set through the Machine Edition program as RTD, thermocouple, resistance, voltage, and current inputs. The IC695ALG600 includes six hardware AD filter frequencies. The GE IC695ALG600 analog module offers fast channel acquisition time range from 10 milliseconds to 127 milliseconds and a configurable input filter range from 8 Hertz to 1 Kilohertz. It provides a full autocalibration and on-board issue-checking. The IC695ALG600 detects and senses both open and short circuit for inputs and RTDs. The IC695ALG600 can be easily installed in a universal RX3i backplane.

The IC695ALG600 contains three (3) LED indicators located on the faceplate to show the module, field and terminal block status. This module draws a current of 400 milliamperes at a voltage of +5 Volts DC and a current of 350 milliamperes at a voltage of +3.3 Volts DC. This module provides a resolution from 11 bits to 16 bits which may vary according to the input range and A/D filter frequency. It dissipates an electrical power of 5.4 Watts and supports an overvoltage of ±14.5 Volts DC and an overcurrent of 28 milliamperes. The IC695ALG600 employs the backplane optical isolation offered by optocouplers to provide electrical isolation of ±12.5 Volts DC volts between channels, 250 Volts AC between groups, and 250 Volts AC between the terminal block. The IC695ALG600 weighs approximately 180 grams (0.39 pounds) while shipping.

The IC695ALG600 GE Fanuc is a type of Universal Analog module with 8 general purpose input channels. 3.3V: 350mA; 5V: 400 mA is the internal power rating on this module. It has 1 (single slot). The power range on this module is 0 to 250/500/1000/2000/3000/4000 Ohms. 5.4 Watts maximum is the power dissipation rate on this module. Along with the 8 general purpose input channels, it also comes equipped with 2 CJC channels. For ease of use, this module divides all the input channels into two equal groups. As far as supported digital frequencies is concerned, this module supports 6 different analogs to digital filter frequencies. These frequencies can be configured individually as per the requirement of each of the channels.

The IC695ALG600 GE Fanuc comes with several diagnostic features. Some of these diagnostic features include - on-board error checking, open-circuit detection, short-circuit detection, and module fault reporting. It comes equipped with many advanced features such as the full auto-calibration, on-board error checking, and user-defined scaling. Furthermore, there are other features on this module as well such as the terminal block insertion or removal detection, module fault reporting, configurable software filters, and configurable interrupts. It can provide temperature reading in both Fahrenheit, and Celsius.

The IC695ALG600 GE Fanuc is compatible with the CIMPLICITY machine edition software. This module offers easy configuration, and commissioning of processes. The input channels are divided into two separate groups. 5.4 Watts is the power dissipation rating on this module. This module supports floating point user scaling.

Technical Specifications

Brand GE Automation Fanuc / Emerson Automation
Series 8 channels, RTD, thermocouple, resistance, current/voltage analogue input module for Rx3i PacSystems
Part Number IC695ALG600
Backplane Power Requirements 400 mA maximum @ 5V / 350 mA maximum @ 3.3V
CPU Memory Usage 40 bytes (20 words) of input references for channel input data./ 40 bytes for enhanced diagnostics / 4 bytes for module status reporting.
Power Dissipation within Module 5.4 Watts, maximum
LEDs One green LED to indicate the module status / One bi-color green/yellow LED to indicate the field status / One bi-color red/green LED to indicate the terminal block status
Channel Acquisition Time 10 msec @ 1000 Hz, 13 msec @ 200 Hz, 27 msec @ 40 Hz, 67 msec @ 16 Hz, 87 msec @ 12 Hz, 127 msec @ 8 Hz
Channel Update Time The sum of the channel acquisition times for a bank of 4 channels plus one of the following if applicable: 1. RTD Lead resistance measurement time (equals channel acquisition time) 2. CJC acquisition time 7 msec.
Input Resolution 11 to 16 bits, depending on configured range and A/D filter frequency.
Voltage / Current Inputs -10V to +10V, 0V to +10V, 0 V to +5V, 1V to +5V, -50mV to +50mV, -150mV to +150mV, -20mA to +20mA, 4 to 20 mA, 0 to 20 mA
Configurable Input Filter 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 1000Hz
Max Overvoltage +/-14.5VDC continuous
Max Overcurrent 28mA continuous
Weight 180 g (0.39 lb)
We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the IC695ALG600?

Answer: Yes. We offer repairs for the IC695ALG600 and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Emerson - GE Fanuc and IC695ALG600?

Answer: If you buy the IC695ALG600 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the IC695ALG600 online?

Answer: Yes. Automation Stop sells the IC695ALG600 online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the IC695ALG600?

Answer: The IC695ALG600 is made by Emerson - GE Fanuc.


Question: What is the Backplane Power Requirements of the IC695ALG600?

Answer: The IC695ALG600 has a Backplane Power Requirements of 400 mA maximum @ 5 volts / 350 mA maximum @ 3.3V.


Question: What Brand is included with the IC695ALG600?

Answer: The Rockwell Automation IC695ALG600 has a GE Automation Fanuc / Emerson Automation Brand.


Question: What Channel Acquisition Time does the Allen Bradley-Rockwell Automation IC695ALG600 have?

Answer: The IC695ALG600 has a Channel Acquisition Time of 10 msec @ 1000 Hz, 13 msec @ 200 Hz, 27 msec @ 40 Hz, 67 msec @ 16 Hz, 87 msec @ 12 Hz, 127 msec @ 8 Hz.


Question: What Channel Update Time does the IC695ALG600 have?

Answer: The Channel Update Time of the Rockwell-Automation IC695ALG600 is The sum of the channel acquisition times for a bank of 4 channels plus one of the following if applicable: 1. RTD Lead resistance measurement time (equals channel acquisition time) 2. CJC acquisition time 7 msec..


Question: What Configurable Input Filter does the Allen Bradley Automation IC695ALG600 have?

Answer: The IC695ALG600 has a Configurable Input Filter of 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 1000Hz.


Question: What is the central processing unit (CPU) random-access memory (RAM) Usage of the IC695ALG600?

Answer: The IC695ALG600 has a central processing unit (CPU) random-access memory (RAM) Usage of 40 bytes (20 words) of input references for channel input data./ 40 bytes for enhanced diagnostics / 4 bytes for module status reporting..


Question: What Input Resolution does the Rockwell-Automation IC695ALG600 have?

Answer: The Input Resolution of the IC695ALG600 is 11 to 16 bits, depending on configured range and A/D filter frequency..


Question: What kind of LEDs does the Allen Bradley-Rockwell Automation IC695ALG600 have?

Answer: The IC695ALG600 has LEDs One green LED to indicate the module status / One bi-color green/yellow LED to indicate the field status / One bi-color red/green LED to indicate the terminal block status.


Question: What Max Overcurrent does the Allen Bradley/Rockwell Automation IC695ALG600 have?

Answer: The IC695ALG600 has a Max Overcurrent of 28mA continuous.


Question: What is the Max Overvoltage of the IC695ALG600?

Answer: The Max Overvoltage of the IC695ALG600 is +/-14.5VDC continuous.


Question: What part Number does the IC695ALG600 have?

Answer: The Allen-Bradley IC695ALG600 has a unit Number of IC695ALG600.


Question: What is the Power Dissipation within Module of the IC695ALG600?

Answer: The IC695ALG600 has a Power Dissipation within Module of 5.4 Watts, maximum.


Question: What is the Voltage / Current Inputs of the IC695ALG600?

Answer: The Allen Bradley-Rockwell Automation IC695ALG600 has a Voltage / Current Inputs of -10 volts to +10 volts 10 volts to +10 volts 0 V to +10 volts 10 volts to +10 volts -50mV to +50mV, -150mV to +150mV, -20mA to +20mA, 4 to 20 mA, 0 to 20 mA.


Question: What Weight does the IC695ALG600 have?

Answer: The Weight of the IC695ALG600 is 180 g (0.39 lb).


Series information for IC695ALG600

For additional information about IC695ALG600 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding IC695ALG600.

Revision Part # Also Known As Availability
IC695ALG600-BC IC695ALG600 Series BC, Rev BC Request a Quote
IC695ALG600-CC IC695ALG600 Series CC, Rev CC Request a Quote
IC695ALG600-DD IC695ALG600 Series DD, Rev DD Request a Quote
IC695ALG600-EE IC695ALG600 Series EE, Rev EE Request a Quote
IC695ALG600-GF IC695ALG600 Series GF, Rev GF Request a Quote
