| Manufacturer: | Emerson - GE Fanuc |
| Product Type: | Automation Product |
| Part Number: | IC695ALG608 |
| Series: | RX3i PacSystem |
| UPC: | 218648404207 |
Description:

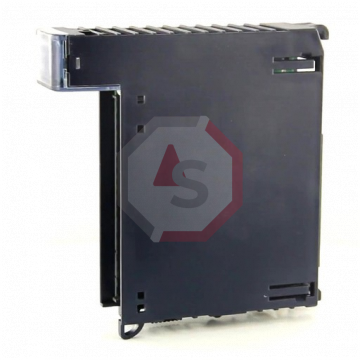

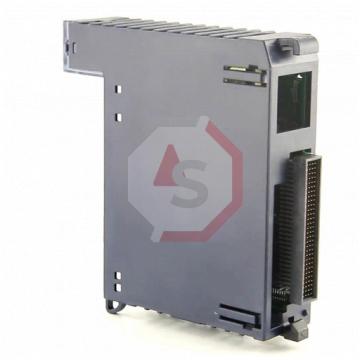

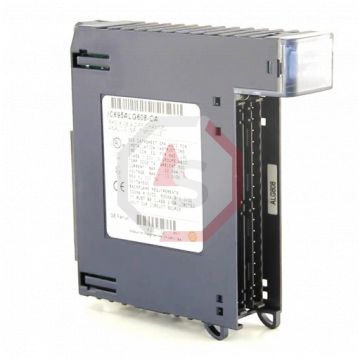

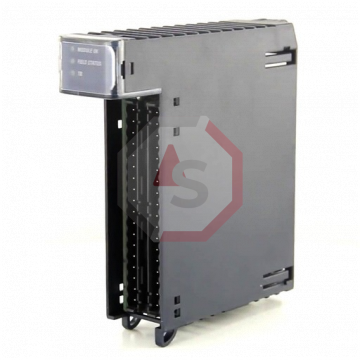

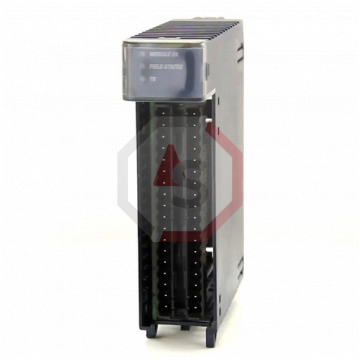

The IC695ALG608 is a 4/8 Channel Non-Isolated Differential Voltage/Current Input module from the Rx3i Series of CPUs. The module can provide four (4) differential or eight (8) single-ended input channels.
Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.
Pay
We accept credit cards from all major providers, as well as PayPal.
Ship
We offer worldwide shipping with UPS and DHL.
Warranty
We proudly offer a one year Automation Stop warranty on most products.
Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
The IC695ALG608 is a Non-Isolated, Differential Analog Voltage/Current Input module manufactured by GE Fanuc for the Rx3i Series of CPUs. This IC695ALG608 module provides four (4) differential and eight (8) single-ended input channels. The analog input channels of the module can be configured for – current: 0 to 20 milliamperes, 4 to 20 milliamperes, and +/- 20 milliamperes, while for voltage, 0 to 10 Volts, +/- 10 Volts, +/-5 Volts, and 1 to 5 Volts. The IC695ALG608 can be used with the IC694TBB032 (box style), IC694TBB132 (Extended box style), IC694TBS032 (spring style), and IC694TBS132 (Extended spring style) terminal blocks. These extended terminal blocks provide the required extra shroud depth for shielded wiring. Terminal blocks can be separately ordered according to the requirement. These modules need to be located in an Rx3i Universal Backplane. The module requires a Rx3i CPU that has a 3.0 or higher firmware version. For configuration, use Machine Edition version 5.0 SP3 Logic Developer Programmable Logic Control.
The main features of the IC695ALG608 module include Full autocalibration, onboard error checking feature, completely configurable using the software, no need to use module jumpers for configuring, module fault reporting, and autocalibration at startup. It also has an open circuit detection for all the voltages and 4 to 20 milliamperes inputs. For alarm detection, the module has a high alarm, low alarm, high-high, and low-low alarm detection and reporting selection per channel. The IC695ALG608 module supports diagnostic point fault contacts in the program. For future upgrades, the module also has flash memory. It also provides the user with the detection of terminal block removal and insertion.
Technical Specifications
| Module Type | Analog Input |
| Number of Inputs | 8 single-ended or 4 differential |
| Number of Slots | 1 (single slot) |
| Current Range | 0-20 milliamperes, 4-20 milliamperes, +/-20 milliamperes |
| Voltage Range | +/- 10 Volts, 0-10 Volts, +/- 5 Volts, 1-5 Volts |
| Resolution | 24-bit ADC converted to Floating Point or integer |
| Filter Options | 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 500Hz |
| Open Circuit Detection Time | 1 second maximum |
| Backplane/Chassis | 250 Volts AC continuous/1500 Volts AC for 1 minute |
| Internal Power | 3.3 Volts: 450 milliamperes; 5 Volts : 600 milliamperes |
FAQ
Question: Does Automation Stop offer repairs on the IC695ALG608?
Answer: Yes. We offer repairs for the IC695ALG608 and it comes with our 1 Year Automation Stop Warranty.
Question: What type of warranty comes with the Emerson - GE Fanuc and IC695ALG608?
Answer: If you buy the IC695ALG608 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.
Question: Can I buy the IC695ALG608 online?
Answer: Yes. Automation Stop sells the IC695ALG608 online and you can check out for the quantity and condition listed available above.
Question: What is the manufacturer for the IC695ALG608?
Answer: The IC695ALG608 is made by Emerson - GE Fanuc.
Question: What Backplane/Chassis does the Rockwell Automation IC695ALG608 have?
Answer: The Rockwell Automation IC695ALG608 has a Backplane/Chassis of 250 Volts alternating current (AC) continuous/1500 Volts alternating current (AC) for 1 minute.
Question: What Current Range does the Allen-Bradley IC695ALG608 have?
Answer: The Current Range of the IC695ALG608 is 0-20 milliamperes, 4-20 milliamperes, +/-20 milliamperes.
Question: What Filter Options does the IC695ALG608 have?
Answer: The Filter Options of the Allen Bradley Automation IC695ALG608 is 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 500Hz.
Question: What is the Internal Power of the IC695ALG608?
Answer: The Internal Power of the IC695ALG608 is 3.3 Volts: 450 milliamperes; 5 Volts : 600 milliamperes.
Question: What Module Type does the IC695ALG608 have?
Answer: The IC695ALG608 has a Analog Input Module Type.
Question: What is the Number of Inputs of the IC695ALG608?
Answer: The IC695ALG608 has a Number of Inputs of 8 single-ended or 4 differential.
Question: What Number of Slots does the IC695ALG608 have?
Answer: The Number of Slots of the IC695ALG608 is 1 (single slot).
Question: What is the Open Circuit Detection Time of the Rockwell Automation IC695ALG608?
Answer: The IC695ALG608 has a Open Circuit Detection Time of 1 second maximum.
Question: What is the Resolution of the IC695ALG608?
Answer: The IC695ALG608 has a Resolution of 24-bit ADC converted to Floating Point or integer.
Question: What is the Voltage Range of the Allen Bradley/Rockwell Automation IC695ALG608?
Answer: The IC695ALG608 has a Voltage Range of +/- 10 Volts, 0-10 Volts, +/- 5 Volts, 1-5 Volts.
Series information for IC695ALG608
For additional information about IC695ALG608 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding IC695ALG608.
| Revision Part # | Also Known As | Availability |
|---|---|---|
| IC695ALG608-EA | IC695ALG608 Series EA, Rev EA | Request a Quote |
| IC695ALG608-KF | IC695ALG608 Series KF, Rev KF | Request a Quote |
