Emerson - GE Fanuc IC693ALG221

✓ In Stock

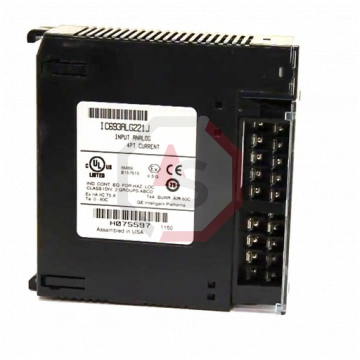

IC693ALG221 Image 1 thumbnail
IC693ALG221 Image 2 thumbnail
IC693ALG221 Image 3 thumbnail
IC693ALG221 Image 4 thumbnail
IC693ALG221 Image 5 thumbnail
IC693ALG221 Image 6 thumbnail
Manufacturer: Emerson - GE Fanuc
Product Type: Automation Product
Part Number: IC693ALG221
Series: Series 90-30
UPC: 799705795242

Description:

This Analog Current Input Module is designed for the 90-30 Programmable Logic Controller Systems. It comes with four input channels. Each of the controller's channels can convert an analog input signal to a digital signal as required by the application. A default input range of 4 to 20 mA with scaled user data is offered, with four mA corresponding to a count of zero and 20 mA corresponding to 32000. 0.5 mA is represented by 1000 counts.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The IC693ALG221 is a product type of analog input module. This model belongs to the GE Fanuc Series 90-30. This model is particularly a hardware component analog current input module. The module presents four input channels. All of the channels in this input module accept input signals at the range of 4-20 mA, 0-20 mA. The input signals come from the field devices and various instruments that the PLCs are compatible with. This model by GE Fanuc features an analog to digital converter of the signals, which significantly helps PLCs process and condition the signals for the user application. The good thing about this module is that users can configure it in any Input/Output rack in a PLC. In addition, the module has an accuracy rate of 0.1% for full scale and an update rate of 2 ms for all four channels at different resolution levels. This module's input filter response time is 325 Hertz, and the input impedance rate is 250 Ω. In addition to the input ranges, the module has an isolation range of the 1500 V RMS field to the logic side. Moreover, the module has a total internal power consumption range of 25 mA at 5 VDC, 100 mA at 24 VDC isolated. However, the voltage from the power source is transferred through a regulator to source the operating voltage to the component. To reduce the noise and capacitive load, make sure all field connectors are connected well. In brief, this module by GE Fanuc integrates well with the PLCs and has an overall durable build quality.

Technical Specifications

Brand GE Fanuc Emerson
Input Current Ranges 4 to 20 and 0 to 20 milliamperes
Calibration Factory Calibrated to 4 µA per count
Update Rate 2 milliseconds (all four channels)
Resolution (4-20 mA) 4 µA (1 LSB = 4 µA)
Resolution (0-20 mA) 5 µA (1 LSB = 5 µA)
Absolute Accuracy 0.1% Full Scale + 0.1% Reading
Common Mode Voltage 200 Volts
Linearity < 1 Least Significant Bit (LSB)
Isolation 1500 Volts between Field Side and Logic Side
Common Mode Rejection > 70 db at DC; >70 db at 60 Hertz
Cross-Channel Rejection > 80 db from DC to 1 Kilohertz
Input Impedance 250 ohms
Input Filter Response 325 Hertz
Internal Power Consumption 100 milliamperes from the Isolated +24 Volt Supply, 25 milliamperes from the +5 Volt Bus on the Backplane
We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the IC693ALG221?

Answer: Yes. We offer repairs for the IC693ALG221 and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Emerson - GE Fanuc and IC693ALG221?

Answer: If you buy the IC693ALG221 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the IC693ALG221 online?

Answer: Yes. Automation Stop sells the IC693ALG221 online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the IC693ALG221?

Answer: The IC693ALG221 is made by Emerson - GE Fanuc.


Question: What is the Absolute Accuracy of the IC693ALG221?

Answer: The Absolute Accuracy of the IC693ALG221 is 0.1% Full Scale + 0.1% Reading.


Question: What Brand does the IC693ALG221 have?

Answer: The IC693ALG221 has a GE Fanuc Emerson Brand.


Question: What Calibration does the IC693ALG221 have?

Answer: The Calibration of the Allen-Bradley IC693ALG221 is Factory Calibrated to 4 µA per count.


Question: What is the Common Mode Rejection of the Allen Bradley Automation IC693ALG221?

Answer: The Common Mode Rejection of the Allen Bradley Automation IC693ALG221 is > 70 db at DC (direct current); >70 db at 60 Hertz.


Question: What is the Common Mode Voltage of the Rockwell-Automation IC693ALG221?

Answer: The Common Mode Voltage of the Rockwell-Automation IC693ALG221 is 200 Volts.


Question: What is the Cross-Channel Rejection of the IC693ALG221?

Answer: The Cross-Channel Rejection of the IC693ALG221 is > 80 db from direct current to 1 Kilohertz.


Question: What Input Current Ranges does the IC693ALG221 have?

Answer: The Input Current Ranges of the Allen Bradley Automation IC693ALG221 is 4 to 20 and 0 to 20 milliamperes.


Question: What is the Input Filter Response of the IC693ALG221?

Answer: The IC693ALG221 has a Input Filter Response of 325 Hertz.


Question: What is the Input Impedance of the IC693ALG221?

Answer: The Rockwell-Automation IC693ALG221 has a Input Impedance of 250 ohms.


Question: What Internal Power Consumption does the IC693ALG221 have?

Answer: The Internal Power Consumption of the IC693ALG221 is 100 milliamperes from the Isolated +24 Volt Supply, 25 milliamperes from the +5 Volt Bus on the Backplane.


Question: What is the Isolation of the Allen Bradley Automation IC693ALG221?

Answer: The Isolation of the Allen Bradley Automation IC693ALG221 is 1500 Volts between Field Side and Logic Side.


Question: What Linearity does the IC693ALG221 have?

Answer: The IC693ALG221 has a Linearity of < 1 Least Significant Bit (LSB).


Question: What is the Resolution (0-20 mA) of the IC693ALG221?

Answer: The IC693ALG221 has a Resolution (0-20 mA) of 5 µA (1 LSB = 5 µA).


Question: What is the Resolution (4-20 mA) of the Allen Bradley-Rockwell Automation IC693ALG221?

Answer: The Resolution (4-20 mA) of the IC693ALG221 is 4 µA (1 LSB = 4 µA).


Question: What is the Update Rate of the IC693ALG221?

Answer: The IC693ALG221 has a Update Rate of 2 milliseconds (all four channels).


Series information for IC693ALG221

For additional information about IC693ALG221 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding IC693ALG221.

Revision Part # Also Known As Availability
IC693ALG221B IC693ALG221 Series B, Rev B Request a Quote
IC693ALG221C IC693ALG221 Series C, Rev C Request a Quote
IC693ALG221E IC693ALG221 Series E, Rev E Request a Quote
IC693ALG221F IC693ALG221 Series F, Rev F Request a Quote
IC693ALG221G IC693ALG221 Series G, Rev G Request a Quote
IC693ALG221J IC693ALG221 Series J, Rev J Request a Quote
