Emerson - GE Fanuc IC693ALG223

✓ In Stock

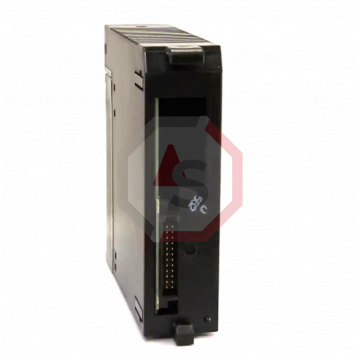

IC693ALG223 | Series 90-30 | Emerson - GE Fanuc | Image 1

IC693ALG223 | Series 90-30 | Emerson - GE Fanuc | Image 2

IC693ALG223 | Series 90-30 | Emerson - GE Fanuc | Image 3

IC693ALG223 | Series 90-30 | Emerson - GE Fanuc | Image 4

IC693ALG223 | Series 90-30 | Emerson - GE Fanuc | Image 5

IC693ALG223 | Series 90-30 | Emerson - GE Fanuc | Image 6

Manufacturer:	Emerson - GE Fanuc
Product Type:	Automation Product
Part Number:	IC693ALG223
Series:	Series 90-30
UPC:	799705792937

Description:

The IC693ALG223 is a 16-Channel Analog Current Input module by GE Fanuc Emerson. Each channel provides the user with the ability to convert an analog input signal to a digital value for use by the operator. This module provides the following 3 input ranges: 4 to 20 milliamperes, 0 to 20 milliamperes, 4 to 20 milliamperes (enhanced).

Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

Pay

Paypal, Mastercard, VISA, American Express, Discover

We accept credit cards from all major providers, as well as PayPal.

Ship

We offer worldwide shipping with UPS and DHL.

Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The IC693ALG223 is a 16-Channel Analog Current Input module by GE Fanuc Emerson. This module has 1 to 16 selectable, single-ended channels and input current ranges of 0 to 20 milliamperes, 4 to 20 milliamperes, and 4 to 20 milliamperes Enhanced (selectable per channel). The IC693ALG223 has an update rate of 13 milliseconds for all 16 channels and an absolute accuracy of +/- 0.25% of full scale at 25 degrees Celsius (+/- 0.5% of full scale over specified operating temperature range). Linearity is < 1 LSB from 4 to 20 milliamperes and < 1 LSB from 100 µA to 20 milliamperes. The IC693ALG223 has an isolation of 1500 Volts between field side and logic side, as well as a common mode voltage of 0 volts (single-ended channels). Cross-channel rejection is > 80 decibels from DC to 1 Kilohertz. Input impedance is 250 Ohms and input low pass filter response is 19 Hertz. Additional specifications for the IC693ALG223 include an external supply voltage range between 20 and 30 Volts DC and an external supply voltage ripple of 10%; internal power consumption is 120 milliamperes from the +5 volt bus on the backplane and 65 milliamperes from 24 Volt DC external user supply (in addition to current loop currents).

The IC693ALG223 has LED indicators for Module OK and User Supply OK. The Module OK LED provides module status information on power-up as follows: ON = status is OK and module is configured, OFF = no backplane power or software not running. When the LED is rapidly flashing, it is an indicator of no configuration data being received from the CPU. When there are slow flashes followed by off, this means that the module failed power-up diagnostics or encountered a code execution error. The User Supply OK LED indicates that the 24 Volt supply is within specifications, enabling the analog side of the module to function correctly.

Technical Specifications

Brand	GE Fanuc Emerson
Number of Channels	1 to 16 selectable; single-ended
Input Current Ranges	0 to 20 milliamperes, 4 to 20 milliamperes, and 4 to 20 milliamperes Enhanced (selectable per channel)
Update Rate	13 milliseconds (all 16 channels)
Absolute Accuracy	+/- 0.25% of full scale at 25 degrees Celsius; +/- 0.5% of full scale over specified operating temperature range
Linearity	< 1 LSB from 4 to 20 milliamperes, < 1 LSB from 100 µA to 20 milliamperes
Isolation	1500 Volts between field side and logic side
Common Mode Voltage	0 Volts (single-ended channels)
Cross-Channel Rejection	> 80 decibels from DC to 1 Kilohertz
Input Impedance	250 Ohms
Input Low Pass Filter Response	19 Hertz
External Supply Voltage Range	20 to 30 Volts DC
External Supply Voltage Ripple	10%

We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.

If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the IC693ALG223?

Answer: Yes. We offer repairs for the IC693ALG223 and it comes with our 1 Year Automation Stop Warranty.

Question: What type of warranty comes with the Emerson - GE Fanuc and IC693ALG223?

Answer: If you buy the IC693ALG223 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.

Question: Can I buy the IC693ALG223 online?

Answer: Yes. Automation Stop sells the IC693ALG223 online and you can check out for the quantity and condition listed available above.

Question: What is the manufacturer for the IC693ALG223?

Answer: The IC693ALG223 is made by Emerson - GE Fanuc.

Question: What Absolute Accuracy does the Allen Bradley IC693ALG223 have?

Answer: The Absolute Accuracy of the Allen Bradley IC693ALG223 is +/- 0.25% of full scale at 25 degrees Celsius; +/- 0.5% of full scale over specified operating temperature range.

Question: What Brand is included with the Rockwell-Automation IC693ALG223?

Answer: The IC693ALG223 has a GE Fanuc Emerson Brand.

Question: What Common Mode Voltage does the Rockwell Automation IC693ALG223 have?

Answer: The Common Mode Voltage of the IC693ALG223 is 0 Volts (single-ended channels).

Question: What is the Cross-Channel Rejection of the IC693ALG223?

Answer: The Cross-Channel Rejection of the Rockwell Automation IC693ALG223 is > 80 decibels from DC (direct current) to 1 Kilohertz.

Question: What is the External Supply Voltage Range of the IC693ALG223?

Answer: The IC693ALG223 has a External Supply Voltage Range of 20 to 30 Volts DC (direct current).

Question: What is the External Supply Voltage Ripple of the IC693ALG223?

Answer: The External Supply Voltage Ripple of the Allen Bradley-Rockwell Automation IC693ALG223 is 10%.

Question: What Input Current Ranges does the IC693ALG223 have?

Answer: The IC693ALG223 has a Input Current Ranges of 0 to 20 milliamperes, 4 to 20 milliamperes, and 4 to 20 milliamperes Enhanced (selectable per channel).

Question: What Input Impedance does the IC693ALG223 have?

Answer: The Input Impedance of the IC693ALG223 is 250 Ohms.

Question: What Input Low Pass Filter Response does the IC693ALG223 have?

Answer: The Input Low Pass Filter Response of the Rockwell-Automation IC693ALG223 is 19 Hertz.

Question: What Isolation does the Allen Bradley/Rockwell Automation IC693ALG223 have?

Answer: The Allen Bradley/Rockwell Automation IC693ALG223 has a Isolation of 1500 Volts between field side and logic side.

Question: What is the Linearity of the Rockwell Automation IC693ALG223?

Answer: The IC693ALG223 has a Linearity of < 1 LSB from 4 to 20 milliamperes, < 1 LSB from 100 µA to 20 milliamperes.

Question: What is the Number of Channels of the Allen Bradley Automation IC693ALG223?

Answer: The Number of Channels of the Allen Bradley Automation IC693ALG223 is 1 to 16 selectable; single-ended.

Question: What is the Update Rate of the IC693ALG223?

Answer: The Allen Bradley IC693ALG223 has a Update Rate of 13 milliseconds (all 16 channels).

Series information for IC693ALG223

For additional information about IC693ALG223 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding IC693ALG223.

Revision Part #	Also Known As	Availability
IC693ALG223B	IC693ALG223 Series B, Rev B	Request a Quote
IC693ALG223C	IC693ALG223 Series C, Rev C	Request a Quote
IC693ALG223D	IC693ALG223 Series D, Rev D	Request a Quote
IC693ALG223-GB	IC693ALG223 Series GB, Rev GB	Request a Quote
