Emerson - GE Fanuc IC693DSM302

✓ In Stock

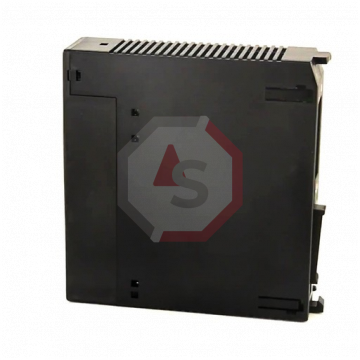

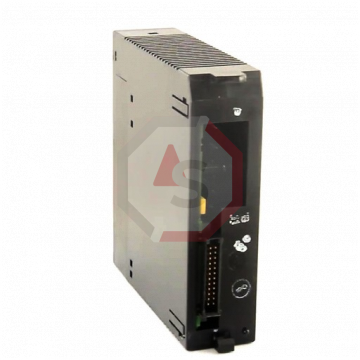

IC693DSM302 Image 1 thumbnail
IC693DSM302 Image 2 thumbnail
IC693DSM302 Image 3 thumbnail
IC693DSM302 Image 4 thumbnail
IC693DSM302 Image 5 thumbnail
Manufacturer: Emerson - GE Fanuc
Product Type: Automation Product
Part Number: IC693DSM302
Series: Series 90-30
UPC: 309080031202

Description:

IC693DSM302 is a motion controller designed by GE Fanuc. It is a high-performance two-axis module designed to work with series 90-30 PLC. The module is configured to deal with complex communication functions and logic solving. It can control servos with digital and analog command input.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The module IC693DSM302 is a motion Mate DSM302 developed by GE Fanuc and is also known as a motion controller. The module can work in tandem with a 90-30 Series PLC. It is designed to solve complex logic and communication functions. This two-axis motion controller module can control digital servos and can also control servos that require analog input such as GE Fanuc SL Series Servos. Within the system, there is a Digital Signal Processor installed that provides options for vector controlling GE Fanuc AC servos. The module can enhance the accuracy of tracking through its Velocity Feed forward and Position Error Integration function. The high-performance Motion controller IC693DSM302 module has an amazing block processing speed of less than 5 milliseconds.
It can transfer data between DSM302 and PLC without any user programming and also allows easy I/O connections through terminal blocks and factory cables. The module has non-volatile memory of 10 programs and 40 subroutines. Moreover, the IC693DSM302 includes a derail port for the users to connect their programming devices. Another function of the serial port is to enable the users to perform soft upgrades to the inbuilt firmware. The firmware is stored in the flash memory of the module. It includes generic programming that uses command parameters as operands for Move, Dwell, Velocity, and Acceleration commands. IC693DSM302 is configured with several Windows or MS-DOS configuration software.

Technical Specifications

Block Processing Time <5 milliseconds
Servo Loop Update Torque- 20 µsec, Velocity- 1 millisecond, and position- 2 millisecond
Position for High resolution :–8,388,608 . . . +8,388,607 User Unit
Velocity for High resolution 1 . . . 8,388,607 User Units/sec
Acceleration for High resolution 1 . . . 134,217,727 User Units/sec/sec
Input 5 Volt, 24 Volt, and for use by PLC, it requires analog I/O
Non-volatile Storage: 10 Programs, 40 subroutines
Two primary control loop configurations: Standard mode and Follower mode
Serial Port Yes
We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the IC693DSM302?

Answer: Yes. We offer repairs for the IC693DSM302 and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Emerson - GE Fanuc and IC693DSM302?

Answer: If you buy the IC693DSM302 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the IC693DSM302 online?

Answer: Yes. Automation Stop sells the IC693DSM302 online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the IC693DSM302?

Answer: The IC693DSM302 is made by Emerson - GE Fanuc.


Question: What Acceleration for High resolution does the IC693DSM302 have?

Answer: The Allen Bradley/Rockwell Automation IC693DSM302 has a Acceleration for High resolution of 1 . . . 134,217,727 User Units/sec/sec.


Question: What Block Processing Time does the Rockwell-Automation IC693DSM302 have?

Answer: The Rockwell-Automation IC693DSM302 has a Block Processing Time of <5 milliseconds.


Question: What Input does the IC693DSM302 have?

Answer: The Input of the Allen Bradley Automation IC693DSM302 is 5 Volt, 24 Volt, and for use by PLC, it requires analog input/output.


Question: What Non-volatile Storage: does the Rockwell Automation IC693DSM302 have?

Answer: The Rockwell Automation IC693DSM302 has a Non-volatile Storage: of 10 Programs, 40 subroutines.


Question: What is the Position for High resolution of the IC693DSM302?

Answer: The IC693DSM302 has a Position for High resolution of :–8,388,608 . . . +8,388,607 User Unit.


Question: Does the Allen Bradley/Rockwell Automation IC693DSM302 have a Serial Port?

Answer: Yes.


Question: What is the Servo Loop Update of the Allen Bradley-Rockwell Automation IC693DSM302?

Answer: The Allen Bradley-Rockwell Automation IC693DSM302 has a Servo Loop Update of Torque- 20 µsec, Velocity- 1 millisecond, and position- 2 millisecond.


Question: What Two primary control loop configurations: does the Allen Bradley IC693DSM302 have?

Answer: The Allen Bradley IC693DSM302 has a Standard mode and Follower mode Two primary control loop configurations:.


Question: What is the Velocity for High resolution of the IC693DSM302?

Answer: The Velocity for High resolution of the IC693DSM302 is 1 . . . 8,388,607 User Units/sec.


Series information for IC693DSM302

For additional information about IC693DSM302 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding IC693DSM302.

Revision Part # Also Known As Availability
IC693DSM302-AA IC693DSM302 Series AA, Rev AA Request a Quote
IC693DSM302-AC IC693DSM302 Series AC, Rev AC Request a Quote
IC693DSM302-AE IC693DSM302 Series AE, Rev AE Request a Quote
IC693DSM302-AF IC693DSM302 Series AF, Rev AF Request a Quote
