Emerson - GE Fanuc IC693MDL230

✓ In Stock

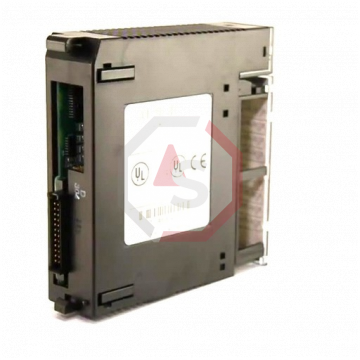

IC693MDL230 Image 1 thumbnail
IC693MDL230 Image 2 thumbnail
IC693MDL230 Image 3 thumbnail
IC693MDL230 Image 4 thumbnail
IC693MDL230 Image 5 thumbnail
IC693MDL230 Image 6 thumbnail
IC693MDL230 Image 7 thumbnail
Manufacturer: Emerson - GE Fanuc
Product Type: Automation Product
Part Number: IC693MDL230
Series: Series 90-30
UPC: 50551623289

Description:

The GE Fanuc Emerson IC693MDL230 is a discrete input module that includes eight discrete isolated inputs that support a voltage rating of 120 volts AC and an input current of 14.5 milliamperes. Each input has a separate common power. These inputs are labeled with green LED indicators to show the status of points. The IC693MDL230 input module weighs approximately 180 grams (0.39 pounds) while shipping.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The GE Fanuc Emerson IC693MDL230 is a discrete input module that includes eight discrete isolated inputs that support a voltage range from 0 volts AC to 132 volts AC and an input current of 14.5 milliamperes. Each input has a separate common power. These inputs are labeled with green LED indicators to show the status of points. The module employs the backplane optical isolation offered by optocouplers to provide electrical isolation of 1500 volts between logic and field sides and 500 volts between inputs. This device can be easily mounted in an I/O slot of either 5 or 10-slot baseplate and at any input or output slots of the 90-30 PLC system. The IC693MDL230 can be started by employing pushbuttons, limit, and electronic proximity switches.

The IC693MDL230 can be electrically supplied either by the operator or from a 120 volts AC power supply. This module draws a current of 60 milliamperes at a voltage of +5 volts DC on the backplane. The inputs support a maximum current of 14.5 milliamperes per point. This input module includes a hinged door that supports an insert in between the outside and the inside surfaces. The outside left edge of the insert is red-colored to show that this device is a high-rating voltage module. The hinged door inside area includes the wiring details of the circuit and the outside area contains the identification detail regarding the circuit. The IC693MDL230 input module weighs approximately 180 grams (0.39 pounds) while shipping and operates at 0 degrees to 60 degrees Celsius (32 degrees to 140 degrees Fahrenheit) for industrial applications.

Technical Specifications

Brand GE Automation Fanuc / Emerson Automation
Series 90-30
Part Number IC693MDL230
Description Isolated input module
Number of I/O points 8
Input groups 8 (each input point has a separate common)
Rated voltage 120 V AC , 50/60 Hz
Input voltage range 0 to 132 volts AC, 50/60 Hz
Isolation 1500 volts RMS between field side and logic side / 500 volts RMS between inputs
Input current 14.5 mA
On-state voltage 74 to 132 volts AC
Off-state voltage 0 to 20 volts AC
On-state current 6 mA minimum
Off-state current 2.2 mA maximum
On response time 30 ms maximum
Off response time 45 ms maximum
Internal power consumption 60 mA (all inputs on) from 5 volt bus on backplane
Weight 180 g (0.39 lb.)
We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the IC693MDL230?

Answer: Yes. We offer repairs for the IC693MDL230 and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Emerson - GE Fanuc and IC693MDL230?

Answer: If you buy the IC693MDL230 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the IC693MDL230 online?

Answer: Yes. Automation Stop sells the IC693MDL230 online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the IC693MDL230?

Answer: The IC693MDL230 is made by Emerson - GE Fanuc.


Question: What Brand is included with the Allen Bradley IC693MDL230?

Answer: The IC693MDL230 has a GE Automation Fanuc / Emerson Automation Brand.


Question: What Description is included with the Allen-Bradley IC693MDL230?

Answer: The Allen-Bradley IC693MDL230 has a Isolated input module Description.


Question: What Input current does the Allen Bradley-Rockwell Automation IC693MDL230 have?

Answer: The Input current of the IC693MDL230 is 14.5 mA.


Question: What is the Input groups of the IC693MDL230?

Answer: The IC693MDL230 has a Input groups of 8 (each input point has a separate common).


Question: What is the Input voltage range of the IC693MDL230?

Answer: The Allen-Bradley IC693MDL230 has a Input voltage range of 0 to 132 volts alternating current (AC), 50/60 Hz.


Question: What is the Internal power consumption of the IC693MDL230?

Answer: The Internal power consumption of the Allen Bradley/Rockwell Automation IC693MDL230 is 60 mA (all inputs on) from 5 volt bus on backplane.


Question: What is the Isolation of the IC693MDL230?

Answer: The Isolation of the IC693MDL230 is 1500 volts RMS between field side and logic side / 500 volts RMS between inputs.


Question: What is the Number of input/output points of the Allen Bradley-Rockwell Automation IC693MDL230?

Answer: The Number of input/output points of the Allen Bradley-Rockwell Automation IC693MDL230 is 8.


Question: What is the Off response time of the IC693MDL230?

Answer: The Off response time of the Rockwell-Automation IC693MDL230 is 45 ms maximum.


Question: What Off-state current does the Allen-Bradley IC693MDL230 have?

Answer: The Off-state current of the Allen-Bradley IC693MDL230 is 2.2 mA maximum.


Question: What Off-state voltage does the Allen-Bradley IC693MDL230 have?

Answer: The IC693MDL230 has a Off-state voltage of 0 to 20 volts AC (alternating current).


Question: What On response time does the Rockwell Automation IC693MDL230 have?

Answer: The On response time of the IC693MDL230 is 30 ms maximum.


Question: What is the On-state current of the IC693MDL230?

Answer: The On-state current of the IC693MDL230 is 6 mA minimum.


Question: What On-state voltage does the IC693MDL230 have?

Answer: The Rockwell Automation IC693MDL230 has a On-state voltage of 74 to 132 volts alternating current (AC).


Question: What is the part Number of the IC693MDL230?

Answer: The IC693MDL230 has a component Number of IC693MDL230.


Question: What is the Rated voltage of the IC693MDL230?

Answer: The Rockwell-Automation IC693MDL230 has a Rated voltage of 120 V alternating current (AC) , 50/60 Hz.


Question: What Weight does the IC693MDL230 have?

Answer: The Allen Bradley IC693MDL230 has a Weight of 180 g (0.39 lb.).


Series information for IC693MDL230

For additional information about IC693MDL230 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding IC693MDL230.

Revision Part # Also Known As Availability
IC693MDL230B IC693MDL230 Series B, Rev B Request a Quote
IC693MDL230C IC693MDL230 Series C, Rev C Request a Quote
IC693MDL230D IC693MDL230 Series D, Rev D Request a Quote
