Emerson - GE Fanuc IC200ALG326

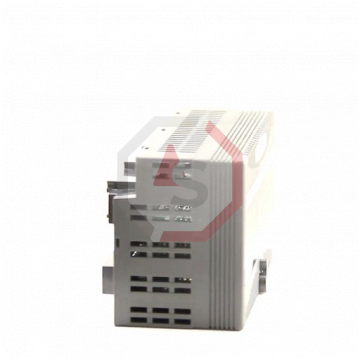

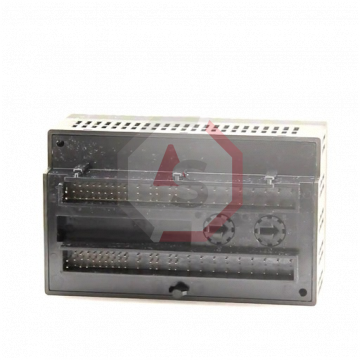

IC200ALG326 Image 1 thumbnail
IC200ALG326 Image 2 thumbnail
IC200ALG326 Image 3 thumbnail
IC200ALG326 Image 4 thumbnail
IC200ALG326 Image 5 thumbnail
Manufacturer: Emerson - GE Fanuc
Product Type: Automation Product
Part Number: IC200ALG326
Series: Versamax
UPC: 578580293902

Description:

The IC200ALG326 is an 8 channel analog output module. It is manufactured by GE Fanuc and is part of the Versamax series.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The IC200ALG326 is a 13-bit current analog-type output module. This type of analog output module commonly delivers an output of current in the range of 4 to 20 milliamperes -- 4 milliampere conforming to zero counts and 20 milliampere conforms to + 32000 counts. The default output range can be changed by configuring in intersection with a jumper. If a jumper is used, the default output current range can be changed to 0 - 20 milliamperes. The default lower range can be either 0 or 4 milliamperes and this default value in the range depends upon the status of the PLC, span of the current assigned, and whether the module is regulated by either network interface unit or versa max PLC CPU. The module installed in a versa max PLC type CPU converts negative value commands to 0 milliamperes regardless of the current span selected and if the module is controlled by a network interface unit it converts any negative value comments to the lower end of the current span.

The operating voltage ranges from 18 to 30 Volts DC. It has a rapid update rate of 15 milliseconds, so it has a better sensitivity rate. The green FLD PWR LED indicator on the module is used to indicate the presence of user side power for analog field circuits and the green light indicates backplane power. All 8 channels are grouped into a single one so there is no isolation provided in between the groups. This module is compatible with Ethernet, DeviceNet, Profibus NIU versions, etc.

Technical Specifications

Voltage Range 18-30 Volts DC
Current Range 4-20, 0-20 milliamperes
Update Rate 15 milliseconds
Thermal Derating none
No. of Bits 13
LED Indicators FLD PWR LED
Backplane Current Consumption 5 Volt Output: 50 milliamperes, max.
Power Consumption 50 milliamperes from +5 Volt bus
Channel-to-Channel Crosstalk Rejection 70 decibels, minimum
Resolution 4-20 milliampere: 5 counts = 2.5 microamperes (~12.7 bits); 0-20 milliampere: 4 counts = 2.5 microamperes (13 bits)
We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the IC200ALG326?

Answer: Yes. We offer repairs for the IC200ALG326 and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Emerson - GE Fanuc and IC200ALG326?

Answer: If you buy the IC200ALG326 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the IC200ALG326 online?

Answer: Yes. Automation Stop sells the IC200ALG326 online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the IC200ALG326?

Answer: The IC200ALG326 is made by Emerson - GE Fanuc.


Question: What is the Backplane Current Consumption of the IC200ALG326?

Answer: The Backplane Current Consumption of the Allen Bradley/Rockwell Automation IC200ALG326 is 5 Volt Output: 50 milliamperes, max..


Question: What Channel-to-Channel Crosstalk Rejection does the IC200ALG326 have?

Answer: The Rockwell Automation IC200ALG326 has a Channel-to-Channel Crosstalk Rejection of 70 decibels, minimum.


Question: What is the Current Range of the Allen Bradley Automation IC200ALG326?

Answer: The Allen Bradley Automation IC200ALG326 has a Current Range of 4-20, 0-20 milliamperes.


Question: What LED Indicators are included with the Allen Bradley-Rockwell Automation IC200ALG326?

Answer: The Allen Bradley-Rockwell Automation IC200ALG326 has LED Indicators FLD PWR LED.


Question: What is the No. of Bits of the IC200ALG326?

Answer: The No. of Bits of the IC200ALG326 is 13.


Question: What Power Consumption does the IC200ALG326 have?

Answer: The Power Consumption of the IC200ALG326 is 50 milliamperes from +5 Volt bus.


Question: What Resolution does the Allen Bradley IC200ALG326 have?

Answer: The Resolution of the IC200ALG326 is 4-20 milliampere: 5 counts = 2.5 microamperes (~12.7 bits); 0-20 milliampere: 4 counts = 2.5 microamperes (13 bits).


Question: What Thermal Derating does the IC200ALG326 have?

Answer: The Rockwell-Automation IC200ALG326 has a none Thermal Derating.


Question: What is the Update Rate of the IC200ALG326?

Answer: The Allen Bradley IC200ALG326 has a Update Rate of 15 milliseconds.


Question: What is the Voltage Range of the IC200ALG326?

Answer: The Voltage Range of the Rockwell-Automation IC200ALG326 is 18-30 Volts DC (direct current).


Series information for IC200ALG326

For additional information about IC200ALG326 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding IC200ALG326.

Revision Part # Also Known As Availability
IC200ALG326D IC200ALG326 Series D, Rev D Request a Quote
IC200ALG326F IC200ALG326 Series F, Rev F Request a Quote
