Emerson - GE Fanuc IC200MDD840

✓ In Stock

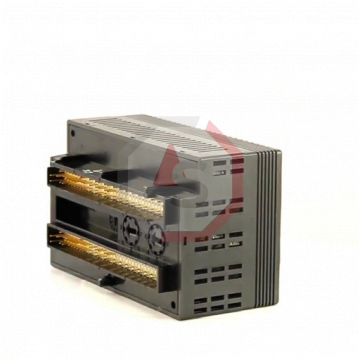

IC200MDD840 Image 1 thumbnail
IC200MDD840 Image 2 thumbnail
IC200MDD840 Image 3 thumbnail
IC200MDD840 Image 4 thumbnail
IC200MDD840 Image 5 thumbnail
Manufacturer: Emerson - GE Fanuc
Product Type: Automation Product
Part Number: IC200MDD840
Series: Versamax
UPC: 898151029908

Description:

The IC200MDD840 is a Positive Logic Module that has twenty (20) discrete inputs and twelve (12) relay outputs. The inputs of this discrete input/output module form two groups of ten (10) points and the relay outputs form two groups of six (6) points.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The IC200MDD840 is a Discrete Input/Output Positive Logic Module that offers twenty (20) discrete inputs and twelve (12) relay outputs. The inputs of the module form two groups of 10 points and these inputs are positive logic and sourcing type inputs. The inputs receive current from electronic devices and instruments and return the current on the common. The output of the module is relay output which forms two groups of six points. Each output group of the module can drive a maximum of eight Amperes of current. The backplane supplies the power for the module operation but the output load must be powered from an external source of supply.

Individual green LEDs are also present in the IC200MDD840 module for status indication. The output light emitting diodes are logic-driven and completely independent of the load condition. The on and off response of basic input of the module is 0.5 milliseconds. The isolation provided for the module is user input to logic and frame ground, 250 VAC continuous and 1500 VAC for a duration of 60 seconds. The group-to-group isolation is also 250VAC for input to logic and frame ground. The backplane current consumption for 5 Volt output is 375 milliamperes maximum. The input impedance is 10 kiloohms maximum. The output voltage range is from 0 to 125 VDC with 5/24/125 VDC nominal and 0 or 265 VAC for 47 Hertz to 63 Hertz with 120/240 VAC. The output voltage drop is 0.3 Volts maximum. The load current is 10 milliamperes per point minimum and 8.0 Amperes maximum per module.

Technical Specifications

Points 20 +DC Inputs, 12 Relay Outputs
Isolation User Input to Logic and Frame Ground 250 VAC Continuous, 1500 VAC for One Minute
Backplane Current Consumption 375 milliamperes maximum for 5 Volt Output
External Power Supply Zero (0) to 125 VDC and Zero (0) to 265 VAC (47-63 Hertz)
Thermal Derating None
Input Voltage Zero (0) to 30 VDC
On and Off State Voltage 15 to 30 VDC (On-State), Zero (0) to 5 VDC (Off-State)
On and Off State Current 2 to 5.5 milliamperes (On-State), Zero (0) to 0.5 milliamperes (Off-State)
Output Voltage Zero (0) to 125 VDC with 5/24/125 VDC nominal, Zero (0) or 265 VAC (47-63 Hertz) with 120/240 VAC nominal
Output Voltages Drop 0.3 Volts, max.
We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the IC200MDD840?

Answer: Yes. We offer repairs for the IC200MDD840 and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Emerson - GE Fanuc and IC200MDD840?

Answer: If you buy the IC200MDD840 through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the IC200MDD840 online?

Answer: Yes. Automation Stop sells the IC200MDD840 online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the IC200MDD840?

Answer: The IC200MDD840 is made by Emerson - GE Fanuc.


Question: What is the Backplane Current Consumption of the IC200MDD840?

Answer: The IC200MDD840 has a Backplane Current Consumption of 375 milliamperes maximum for 5 Volt Output.


Question: What is the External power supply component of the Allen-Bradley IC200MDD840?

Answer: The IC200MDD840 has a External power supply component of Zero (0) to 125 VDC and Zero (0) to 265 VAC (voltage alternating current) (47-63 Hertz).


Question: What Input Voltage does the IC200MDD840 have?

Answer: The Input Voltage of the Allen Bradley IC200MDD840 is Zero (0) to 30 VDC.


Question: What is the Isolation of the Allen Bradley IC200MDD840?

Answer: The IC200MDD840 has a Isolation of User Input to Logic and Frame Ground 250 voltage alternating current (VAC) Continuous, 1500 voltage alternating current (VAC) for One Minute.


Question: What is the On and Off State Current of the Rockwell-Automation IC200MDD840?

Answer: The Rockwell-Automation IC200MDD840 has a On and Off State Current of 2 to 5.5 milliamperes (On-State), Zero (0) to 0.5 milliamperes (Off-State).


Question: What On and Off State Voltage does the IC200MDD840 have?

Answer: The IC200MDD840 has a On and Off State Voltage of 15 to 30 VDC (On-State), Zero (0) to 5 VDC (Off-State).


Question: What Output Voltage does the Allen Bradley/Rockwell Automation IC200MDD840 have?

Answer: The Output Voltage of the IC200MDD840 is Zero (0) to 125 VDC with 5/24/125 VDC nominal, Zero (0) or 265 voltage alternating current (VAC) (47-63 Hertz) with 120/240 voltage alternating current (VAC) nominal.


Question: What Output Voltages Drop does the Allen Bradley-Rockwell Automation IC200MDD840 have?

Answer: The Output Voltages Drop of the IC200MDD840 is 0.3 Volts, max..


Question: What Points does the Allen Bradley Automation IC200MDD840 have?

Answer: The Points of the Allen Bradley Automation IC200MDD840 is 20 +DC Inputs, 12 Relay Outputs.


Question: Does the Allen Bradley IC200MDD840 have a Thermal Derating?

Answer: None.


Series information for IC200MDD840

For additional information about IC200MDD840 check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding IC200MDD840.

Revision Part # Also Known As Availability
IC200MDD840A IC200MDD840 Series A, Rev A Request a Quote
IC200MDD840C IC200MDD840 Series C, Rev C Request a Quote
IC200MDD840H IC200MDD840 Series H, Rev H Request a Quote
IC200MDD840K IC200MDD840 Series K, Rev K Request a Quote
IC200MDD840M IC200MDD840 Series M, Rev M Request a Quote
