Allen-Bradley MPL-A310P-MJ22AA

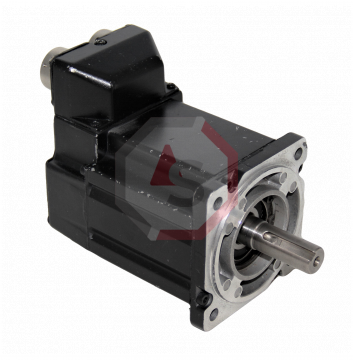

Allen-Bradley's MPL-A310P-MJ22AA brushless servo motor is a low-inertia, high-output servo motor designed to fulfill the rigorous specifications of a motion system. This rotary-type servo motor unit is a component of the servo motor family and low-inertia MP range. The motor features a small design that enables it to generate additional torque compared to motors of the same size. This servo motor unit is manufactured by Allen-Bradley. Additionally, it allows for the use of a single connector connection family. When operating at 5000 revolutions per minute at 4.9 amps of an input signal and 0.73 Kilowatt output power, this MPL-A310P-MJ22AA servo motor produces a rated motor speed of 5000 revolutions per minute and a 0.73 Kilowatt output power. An AC voltage motor with a torque capacity of 14 pounds per inch and peak torque of 32 pounds per inch. The MPL-A310P-MJ22AA servo motor is powered by a 200-volt alternating current. The MPL-A310P-MJ22AA servo motor retains its operational identity due to an inbuilt memory that automatically associates the motor profile with the linked system at startup, reducing programming time and enhancing productivity. For accurate and smoother control, it is integrated into a single multi-turn encoder that offers precise position feedback. It does not need the usage of batteries to work. This servo motor is equipped with a bayonet-style DIN connection, which allows when just a single connectors cable type is being used over the whole servo motor series while also allowing for connector orientation versatility. This motor is supplied with a crucial conclusion shaft and a housing that is certified at IP51 protection. This MPL-A310P-MJ22AA servo motor offers a non-derating ambient temperature range of 0 to 40° Celsius, and a non-condensing moisture content range of 5 to 95%
