Emerson - GE Fanuc IC693CPU363

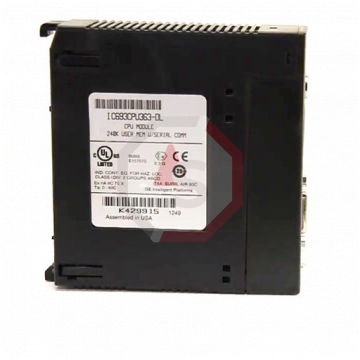

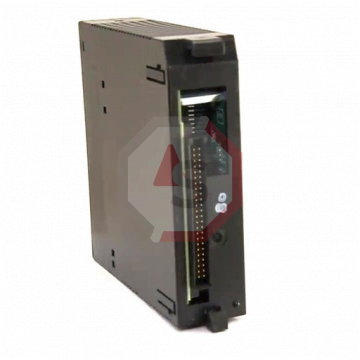

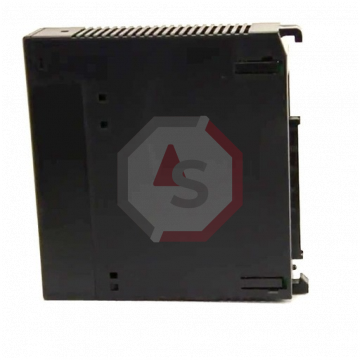

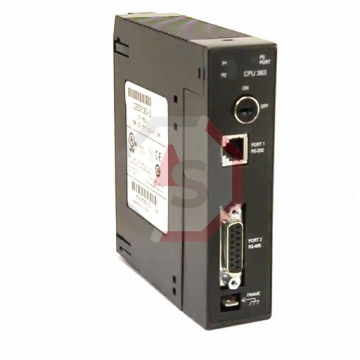

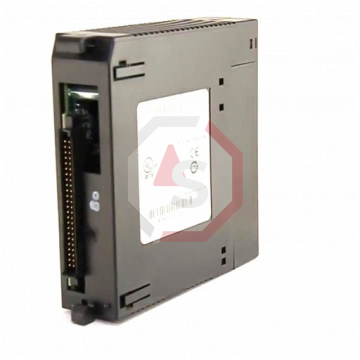

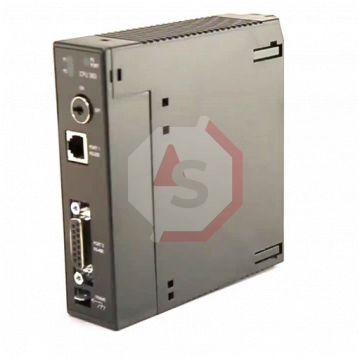

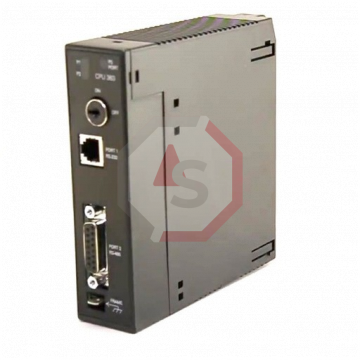

The IC693CPU363 is a module that is branded and manufactured by GE Fanuc Emerson. This hardware offers 240 Kilobytes of configurable user memory, 4K I/O, 8 racks, and 2 built-in serial ports at .22 milliseconds per K. The IC693CPU363 is a single slot CPU module that has eight (8) total baseplates epr system (CPU baseplate + 7 expansion and/or remote). The load required from power supply is 890 milliamperes from a +5 Volt DC supply. This hardware has a processor speed of 25 MegaHertz and an 80386EX processor type. The operating temperature range for the module is between zero (0) and 60 degrees Celsius, or 32 to 140 degrees Fahrenheit. It has a typical scan rate of 0.22 milliseconds per 1K of logic (boolean contacts). User memory totals at 240K (245,760) bytes. The actual size of available user program memory depends on the amount configured from %R, %AI, and %AQ configurable word memory types.

System registers is 28 words (%SR) and is used for reference table viewing only; it cannot be referenced in user logic program. Timers/counters is >2,000 and it has three (3) built-in ports that support SNP/SNPX slave (on power supply connector). On ports 1 and 2, support for SNP/SNPX master/slave and RTU slave is available. Communications incllude LAN that supports multidrop, and also supports Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules. Override, a battery backed clock, and PCM/CCM compatibility are all available with this IC693CPU363 module by GE Fanuc Emerson. Typical memory storage for this hardware is RAM and Flash and it supports Floating Point math that is firmware based (Release 9.0 and later).

IC693CPU363 is a CPU Type of Single-slot CPU module by GE Fanuc. The total baseplates per system applicable for this module are eight, including a CPU baseplate and seven expansion or remote baseplates. The power load necessary from a power supply for this module is 890mA via a +5 Voltage Direct Current source. It presents 80386EX, a processor type with a processing speed of 25 MegaHertz. The standard operating temperature of this CPU module is zero to 60 °C. This model takes 0.22 ms for 1k Boolean contact to scan. The user memory details of this product are 240K (245,760) Bytes. As usual, the exact memory size varies based on which user program memory is being configured. The I/O points are 2048, the global memory is 1280 bits, and the Internal Coils are 4096 bits. In addition, the allowed register memory for this module is in 128-word. There are 2048 I/O points, 1280 bits of global memory, and 4096 bits of internal coils. Unlike the earlier versions in this product lineup, the CPU module supports three ports, which only support one port. Besides, it is applicable to the Ethernet and LAN for communication. Hence, it will give users improved communication. In addition, the module is compatible with the timers, overrides, registers, and RAM and Flash memory features. Besides, it also allows floating-point maths and can be compatible with the PCM and CCM. A backed battery clock and a regular subroutine feature are among some of the accepted standards for this module.
